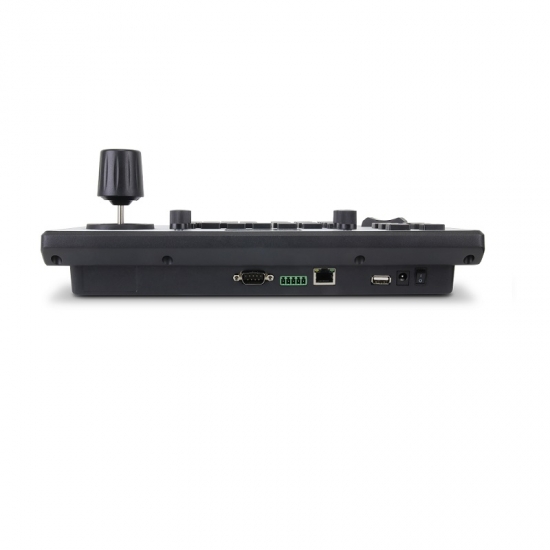

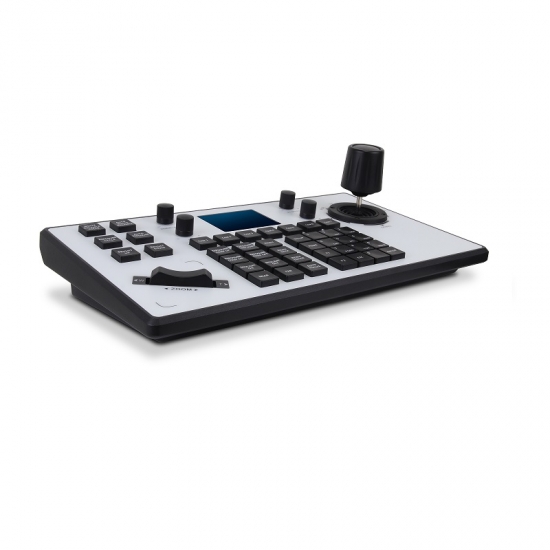

IP PTZ Controller

CKB-E2U IP keyboard controller controls PTZ camera in network and analog modes, accepting various protocols such as Visca, Pelco D/P ect. With rich shortcut buttons for common camera setting, it makes camera control super easy and fast.

item no.:
CKB-E2IP
payment:
T/T, Paypal, West Union
product origin:
China
lead time：
5

contact now download

Description
Information
Downloads

Strong Control Aility

※ Camera control in IP and analog modes
※ Full VISCA, ONVIF, PELCO-D/P protocols
※ Support IE web setting, built-in web server makes the configuration interface simple and clear
※ Support POE

Easy Operation

※ 7 Buttons to swith 7 cameras

※ 4D joystick control
※ Rocker witch controls zoom speed
※ Shortcut keys/knobs for common camera settings

Simple and Beautiful Apperance

※ TFT CD screen display
※ Elegant design

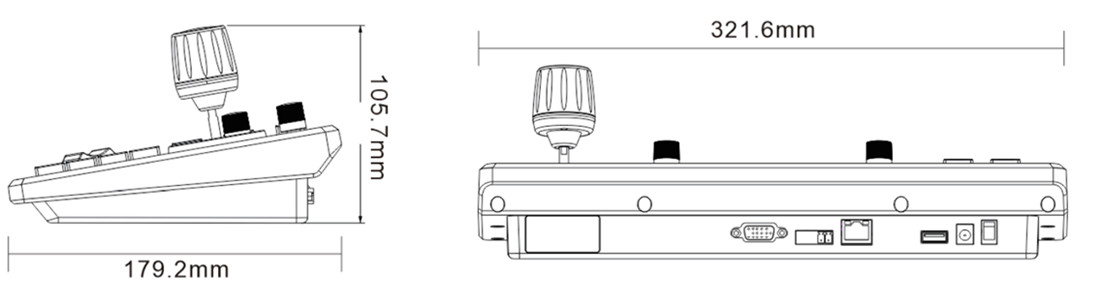

Dimensions

Model No.	CKB-U2IP
White Balance	Button, Auto, Indoor, Outdoor, One Push, Manual
Exposure	Button, Auto, Manual, Shutter Priority, Iris Priority, Bright Priority
Shortcut Button	Bright Adjustment, Exposure Gain, BLC, Focus Model Selction, OSD
Shortcut Knob	R/B Gain, Iris, Pan/Tilt Speed(1-8 Steps), Zoom speed(1-8 Steps)
Protocol	Full VISCA, PELCO-D/P，ONVIF
Output	RS422, RS232, RS485, RJ45
Joystick	4D joystick
Screen	TFT LCD 320*240
Power Consumption	≤5W
Power	DC12V-2A
Work Temperature	-10°C - 55°C / 14°F - 131°F
Work Humidity	20% - 80% non-condension
Size	321.6mm x 179.2mm x 105.7mm
Weight	1630g
Outer box size and specifications	553460350mm / 6 sets
weight	1.9KG

Tags : PTZ Controller Keyboard Controller IP PTZ Controller
