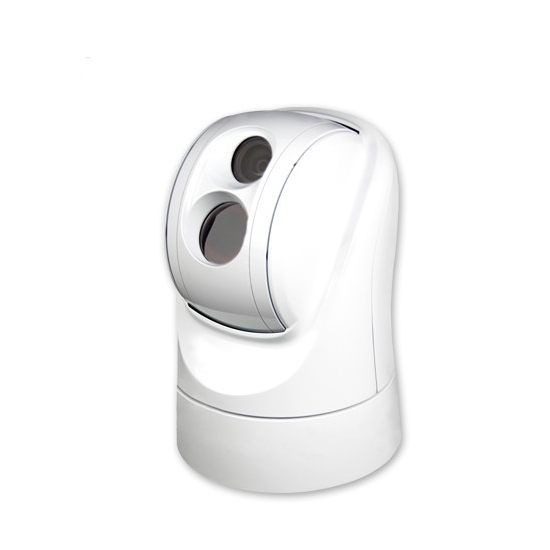

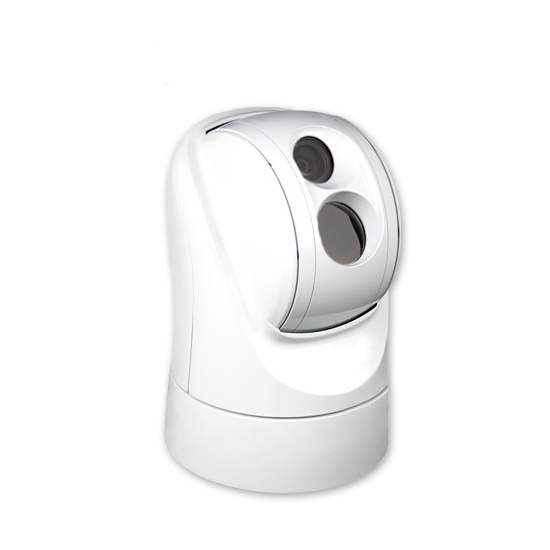

PATC IP HD SDI Dual Lens Thermal Imaging PTZ Cameras with Digital Gyro

PATC IP HD SDI Dual Lens Thermal Imaging PTZ Cameras with Digital Gyro is good used on the Marine, IP67 weatherpoof, 20X HD SDI Day light video, 384x288 & 640x480 thermal lens optional, 10.8 -28V output range voltage input.
  • item no.:

    PATC-FZ319S2008(G)
  • product origin:

    20X
  • shipping port:

    IP67
  • Description
  • Information

Features


※ Uncooled Amorphns Silicon FPA, resolution: 384x288/640x480
※ 1/2.8" CMOS color visual camera, 2.14MP, 23X optical zoom
※ Dual HD-SDI outputs for color visual camera and thermal imaging camera
※ Dual H.264 output for color visual camera and thermal imaging camera
※ Single axis vertical stabilization
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate
※ 10.8 - 28V wide range voltage input
※ Waterproof index: IP67
※ Auto power-off with low power supply

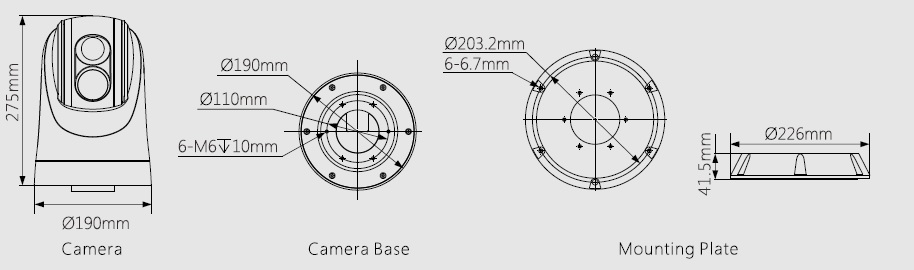

Dimension






Model No.

PATC-FZ319S3002GT

PATC-FZ340S3002GT

PATC-FZ619S3002GT

PATC-FZ640S3002GT

Thermal Imaging Camera

Sensor Type

Uncooled Amorphns Silicon FPA

Working Band

8μm~14μm

Resolution

384 x 288

640 x 480

Sensor Size

17μm

NETK(300K)

≤60mk

FOV

19mm:19.5° x 14.7°

40mm:9.3° x 7°

19mm:32.0° x 24.2°

40mm:15.5° x 11.6°

Detecting Range

Vehicle:2570m Man:550m

Vehicle:5400m Man:1170m

Vehicle:2570m Man:550m

Vehicle:5400m Man:1170m

Recognition Range

Vehicle:640m  Man:130m

Vehicle:1350m Man:290m

Vehicle:640m   Man:130m

Vehicle:1350m Man:290m

Video Display

Black Hot / White Hot

White Hot / Black Hot /Color Palettes

Digital Zoom

1X,2X,4X

Daylight Imaging Camera

Video Sensor

1/2.8" SONY "Exmor R" CMOS, 2.13 Megapixel

Zoom

Optical: 30X; Digital:12X

Lens

f = 4.3mm - 129mm, F1.6.-F4.7

View Angle

63.7°(wide) - 2.3°(tele)

Min.Illumination

Color: 0.35Lux; Mono:0.013Lux

S/N Ratio

Not less than 50dB

WDR

On/Off

BLC

On/Off

DNR

1 - 5 Step/Off

Day / Night

Auto/Manual

Pan Range

 360° Continuous

Pan Speed

 Control speed: 0.04° - 100°/s;  Preset speed: 100°/s

Tilt Range

 -15° - 90°(Auto Flip)

Tilt Speed

 Control:0.04° - 90°/s, adjustable; Preset Speed: 90°/s

Preset

 256

Preset Precision

 ±0.2°

Digital Stabilization

Single Axis vertical stabilization

Network

Daylight Cam Resolution

PAL: 1080p25, 720p50,720p25; NTSC:1080p30,720p60,720p30

Thermal Cam Resolution

PAL: 720 x 576; NTSC: 720 x 480

Video Compression

H.264

Network Protocols

HTTP, RTSP,TCP,UDP,ONVIF

Simultaneous Live View

Up to 10

Dual Stream

Support

Video Interface

Dual SDI / Dual CVBS

General

Control Interface

RS-485

Adress

0 - 255

Comm Protocol

PELCO-P/PELCO-D(Self-Adaptive)

Baud Rate

2400bps, 4800bps,9600bps,19200bps(Self Adaptive)

Voltage

DC 10.8 - 32V

Power

35W/50W

Working Temperature

 -25°C - +55°C

IP Code

IP67

Dimensions

Φ190(mm) x 275(mm)

Weight

6.3±0.1Kg
