4KP60 12G-SDI Dual Lens AI PTZ Camera

PCB-120F professional Broadcast-Grade PTZ Camera. 20X Optical Zoom, 71°HFOV with OIS + EIS anti-shake, PDAF + CDAF focusing. OLPF for moire removal and ND filter for light adjustment. Support 12G-SDI

item no.:
PCB-120F
payment:
T/T Advance
product origin:
China
color:
Black
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

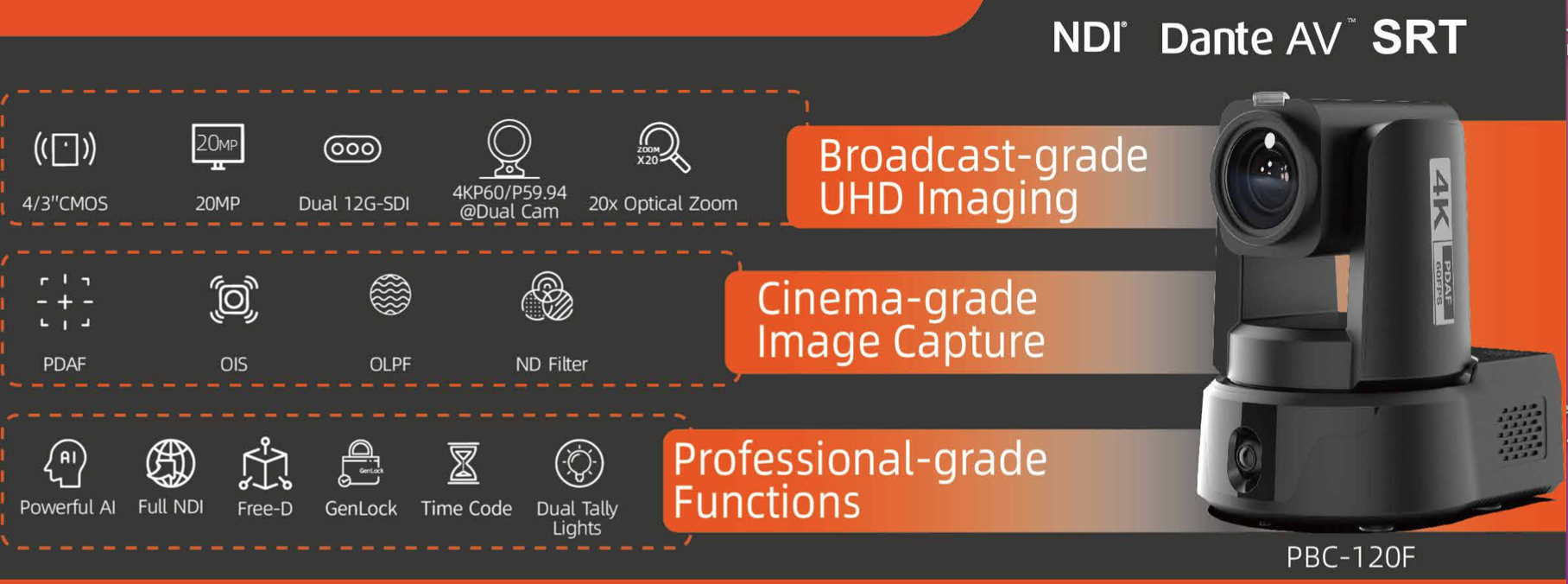

4K60 12G-SDI PTZ Camera

Feature & Benefits:

4/3“ CMOS, 20MP

Fitted with a 4/3" CMOS close up sensor and a 1/1.8" CMOS full view sensor, 20 MP close up lens supports high quality broadcast-grade dual-camera output up to 4K P60/P59.94, delivering videos of ultra-high clarity and precise detai reproduction.

20X Optical+Wide+Angle Full View

20x optical zoom, it vividly captures rich details even from for distance. The Wide-Angle Full View can output images and be used to assist AI. Ideal for large-scale program production and live sports broadcasts, its compact design allows seamless adaptation to complex environments.

Dual 12G-SDI Simultaneous Output

Dual 12G-SDI interface(one BNC and rade one SFP+) enable simultaneous output of two 4KP60 high-quality pictures, meeting broadcast-grade recording needs. Hign-spec interfaces like Genlock, and Time Code enable professional recording connections and post-production editing.

PDAF+CDAF

The combination of PDAF and CDAF focusing technologies enables iinstant focusing on people/objects in large scenes, at high zoom, and during high-speed mobement, ensuring continuous clear image output.

OIS+EIS

OIS and EIS fit diverse indoor/outdoor scenarios. Even in harsh outdoor conditions, the camera, powered by dual OIS and EIS, ensures steady, high-quality footage during recording.

OLPF

OLPF technology can reduce and eliminate moire patterns caused by grids, shutters, and electronic screens during shooting. It can present clear and high-quality footage for flim and television production

ND Filter

ND filter adjustable, allowing users to control the camera's light intake. Even direct sunlight during the daytime, it can output high-quality images.

Free-D

The Free-D protocol can be used for AR/VR creation. Ensure seamless integration between virtual elements and real scenes, bringing a highly immersive viewing experience to the audience.

Full NDI,(SDVoe, HDBaseT) Opotional

Full NDI enables lossless and efficient transmission of 4Kp60 UHD video with just a single network cable connection. It also effers SDVoE and HDBaseT options, greatly expanding the camera's scope of application.

15+ Years AI Technology Experience

Lecturer Tracking
Lecturer Tracking includes switching between single cam tracking and dual cam tracking, Everywhere Tracking, slected target racking, target sitch tracking and gesture tracking etc. It not only significantly enhances the stability of tracking but also can adapt to complicated scenarios.

Auto Framing
Keep everyone in the picture with multi-preson framing. Auto adjust the picture as people enter and leave the area. And it has strong anti-interference ability. With an efficient, and smooth movement, it guraantees high-quality framing result.

Anything Tracking

You can select any object in the video for tracking. It is not only a breakthrough in tracking technology but also expands the application scenarios of tracking. Any object be tracked, making tracking a trend and a habit.

Diverse Application Scenarios

Multimedia classrooms and large-scale trainning sesions etc.

Press conferences, large-scale events, and concerts etc.

Variety shows, sports arenas, and news recording seesions etc.

Model No.	PBC-120F
Tracking Camera
Image Sensor	4/3" CMOS, 20MP
Max Resolution	4KP60
Focal Length	f=9.8mm - 186mm
Iris	F2.8 - F4.5
Optical Zoom	20X
Field of View	Horizontal: 71°-4°； Vertical: 40° - 2°; Diagonal: 79° - 4.5°
Digital Zoom	8X
OLPF	Supported
ND Fliter	Electronic: 1/64, 1/16, 1/4, 1
Distortion Correction	Supported
Focusing Mode	PDAF+CADF
Full View Camera
Image Sensor	1/1.8" CMOS, 8.46MP
Max Resolution	4KP60
Focal Length	f=4.4mm
Iris	F2.0
Field of View	Horizontal: 85°； Vertical: 53°; Diagonal: 93°
Adjustable Angle	Vertical: ±20°
Image Parameters
Image Stlye	One-key switching among multiple image styles
DNR	2D & 3D
Min Illumination	0.5Lux
Shutter Speed	1/25 - 1/10,000s
Gain	Auto, Manual
White Balance	Auto, Manual,Indoor,Outdoor, Auto Tracking, Static Color Temperature, One push
Backlight Compensation	Supported
Wide Dynamic Range	Supported
High Dynamic Range	Supported
Exposure Mode	Auto, Manual,Shutter Priority,Brightness Priority,Iris Priority, Auto Tracking
Metering Mode	Top, Buttom, Center, Average, Left, Right
S/N Ratio	≥50dB
Parameter Adjustment	Image parameters of close up and full views can be adjusted independently
Color Matrix	Supported
Image Stabilization	OIS + EIS
Image Flip	Horizontal mirroring, Vertical Flipping
PTZ
Horizontal	-170° - +170°; 0.05° - 120°/s
DNR	-30° - +90°; 0.05° - 90°/s
Software Function
PIP	Supports picture-in picture function for both close-up and full views PIP postion: top-left, butoom-left, top-right and buttom right
OSD	Customized overlay of OSD character
Preset Position Freezing	Supported
Software Upgrade	1. USB upgarde, supporting Windows and Mac system 2. WEB upgrade.
Powerful AI
Lecturer Tracking	1. Supports everwhere tracking, zone tracking, selected target tracking 2. Supports two tracking ways: dual cam tracking and single cam tracking 3, Supports adjustable target tracking aspect ratio(Full body, half body, clese up) 4. Supports setting the target position of image(left, middle, right) 5. Supports the setting of blocking aareas and preset areas 6. Supports switching target and adjustable body size by remote control 7. Gesture Control
Auto Framing	Multi-person framing(framing with designated zone) Support people counting
Anything Tracking	Track any object besides human body
Interface
HDMI	1-channel HDMI 2.0 1. Audio:PCMk48K,dual-channel 2. Color space:YUY/RGB 444(8bit),YUY 422(10bit),YUY 420(8bit) (The default color space is YUY 422(10bit)) 3. Video resolutions: 38402160@60/50/30/25fps; 19201080@60/50/30/25fps; 1280720@60/50/30/25fps 4. i-frame resolution: 1080i@60/59.94/50fps 5.Broadcast TV resolution: 38402160@59.94/29.97fps; 19201080@59.94/29.97fps; 1280720@59.94/29.97fps
Network	1-channel RJ45 interface, supporting 10M/100M/1000M adaptive Ethernet It comes standard with a BT standard POE module and can output audio in AAC format 1. Video formats:H.264/H.265/MJPEG 2. Video resolutions: 38402160@60/50/30/25fps; 19201080@60/50/30/25fps; 1280720@60/50/30/25fps; 640360@60/50/30/25fps 3. Network protocols: RTSP,RTMP,Visca Over IP, ONVIF, SRT, NDI HX3, Dante AV-H 4. Audio compression:AAC 5. Supports multi-stream output 6. Supports Web UI, HTTP, API
USB	1-channel USB 3.0 Type-A (switchable between HOST and DEVICE) 1. Audio output: UVC (PCM, 48K, dual-channel) 2. Color space:RGB 420 3. Compatible with USB2.0 4. UVC 1.1 protocol 5. UVC video formats USB3.0: H.264/H.265/MJPEG: 38402160@60/50/30/25fps; 19201080@60/50/30/25fps; 1280720@60/50/30/25fps; 640360@60/50/30/25fps YUY2/NV12: 19201080@30/25fps; 1280720@30/25fps; 640360@30/25fps USB2.0: H.264/H.265/MJPEG: 128072030/25fps; 640*360@30/25fps
3G-SDI	Two channels of 3G-SDI, one for close-up and one for full view, with audio output supported (PCM, 48K,dual-channel) 1. Video resolutions: 19201080@60/50/30/25fps; 1280720@60/50/30/25fps 2. i-fram resolution(3G-SDI supports close up view): 1080i@60/59.94/50fps 3. Support broadcast TV resolutions(3G-SDI supports close up): 19201080@59.94/29.97fps; 1280720@59.94/29.97
12G-SDI	Two channels of 12G-SDI(one BNC and one SPF+),with audio output supported(PCM,48K,dual-channel). 1. Video resolutions: 38402160@60/50/30/25fps;19201080@60/50/30/25fps; 1280720@60/50/30/25fps 2. i-fram resolution(3G-SDI supports close up view): 1080i@60/59.94/50fps 3. Broadcast TV resolutions: 38402160@59.94/29.97fps; 19201080@59.94/29.97fps; 1280720@59.94/29.97
SFP	One fiber optic network interface
GenLock	One BNC interface for input only
Time Code	One BNC interface for input only
Full NDI	One channel of Full NDI, which can output audio and supports POE++(mutually exclusive with HDBaseT and SDVoE) The video resolutions and formats are the same as those of HDMI
SDVoE(Optional)	One channel of SDVoE, which can output audio and supports POE++(mutually exclusive with HDBaseT and Full NDI) The video resolutions and formats are the same as those of HDMI
HDBaseT(Optional)	One channel of HDBaseT, which can output audio and supports POE++(mutually exclusive with SDVoE and Full NDI) The video resolutions and formats are the same as those of HDMI
Audio	Two Audio-Input XLR Cannon sockets: 1.Phantom power supply 2. Support AAC/UAC 3. Sampling rates: 16k, 32k and 48k
Factory Reset	Can be restored by pressing the reset button
Control	One channel RS-232/422(RJ45) Support Visca, Pelco-P, Pelco-D protocols
Security Lock Slot	One channel kensington Lock
TF Card	External TF ccard, MAX 2TB, setting by web UI
Power	Input: 100-240V, 50-60Hz, output: DC12V,5A
General
Preset Number	256
Indicator Light	Power indicator, status indicator, dual tally lights
Language	English
Installation Method	Upright, Inverted
Operating Temperature	Temperature: 0°C - +40°C; Humidity:10%RH - 90%RH
Storage Temperature	Temperature: -20°C - +60°C; Humidity:10%RH - 95%RH
*Dimensions(LWH)*	208.3mm238mm299.3mm
Weight	≤5kg
Infrared Remote Control	Supported
*※※※Product specification are subject to change without notice***
