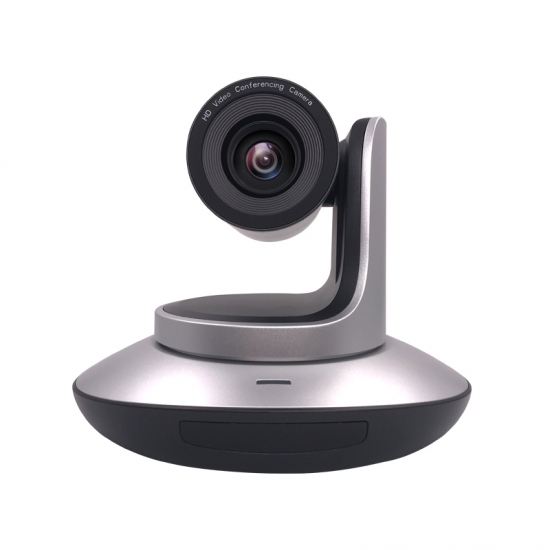

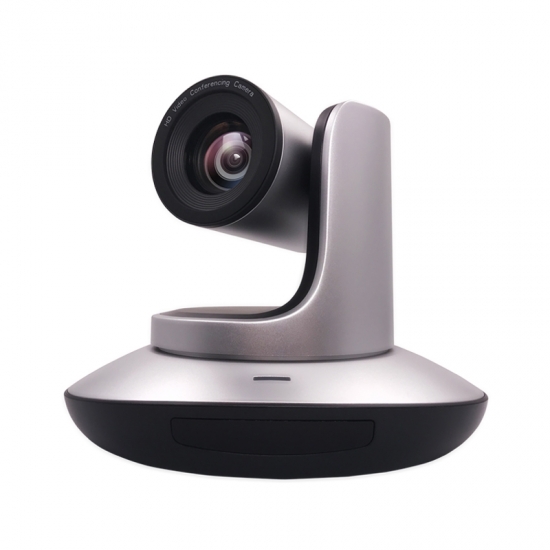

UHV IP 20X PTZ Video Camera with POE Optional

UHV-20X-S Broadcast level 20x optical zoom 3G-SDI&HDMI PTZ video camera, particularly used for large space A/V system, such as auditorium, boardroom, house of worship, court room, legislative space and broadcast video production etc.
  • item no.:

    UHV-20X-IP-S
  • color:

    Gray/Silver
  • Description
  • Information
  • Downloads

Features


Adopts most advanced DSP, 1/2.8 inch 5MP sensor; 

20x Optical Zoom + 2x Digital Zoom, with 61 degree field of view;  

1080P60 video over IP, and support H.264, H.265 encoding; 

Support POE: easy to use one RJ45 cable to get video, control and power supply; 

IP, HDMI, SDI, USB outputs, fit for different application;  

Smooth PTZ mechanical design, accurate pan tilt motor control; 

Special Focusing Algorithm: fast and precise focusing performance when zooming or moving; 

WDR, 3D Noise Reduction feature; 

Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP. 

Supplied with functional IR remote controller, can set IP address via OSD menu; 

Automatic access to the IP address; 

128 presets; 

Image flip function, support upside-down installation; 

Support daisy chain feature;


Specification


Model No.

UHV-20X-IP-S

Camera

Sensor

1/2.8 inch, 5Mega Pixel High Quality CMOS sensor

Video System

HDMI

SDI

IP

USB3.0

USB2.0

1920X1080P60/50/30/25;
1280X720P60/50/30/25;
1920X1080i60/50

1920x1080P60/50/30/25;
1280x720P60/50/30/25
1920x1080i60/50

Main Steam:1920x1080P60
Sub Steam:1280x720,704x576,640x480,352x288

1920x1080P60/50/30/25
1280x720P60/50/30/25

1280x720P25;1024x576P30;
960x540P30;640x360P30;512x288P30,352x288P30

Zoom

20x optical zoom & 2x digital zoom

View Angle

61°(diagonal)

Focal Length

f=5.2(near) - 98mm(far)

Preset

10 via remote controller: 128 via serial port; preset precision: 0.1°

Noise Reduction

2D & 3D

SNR

Above 50dB

Minimum Lux

0.01Lux

White Balance

Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

0.01Lux

IRIS

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Focus

Auto/Manual

Mechanisam

Rotation Angle

Pan: -170° - +170°; Tilt: -30° - +90°

Rotation Speed

Pan:0°  - 120° /s; Tilt: 0° - 80°/s

Pan Tilt Flip

Supported

Control Port

RS232/RS485

Video Port

HDMI/RJ45/SDI/USB3.0/USB2.0

SNR

75dB

Encode

Network Speed

1000M

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps - 30720Kbps

Frames

50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps

IP Protocol

TCP/IP, HTTP, RTSP, Onvif DHCP

POE

Supported

Input Voltage

DC12V,2A

OSD Menu

Language

English/Chinese

Dimension(W x H x W)

Auto/Manual

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)

Package

320mm x 300mm x 310mm

Warranty

Basic Warranty

2 Years
