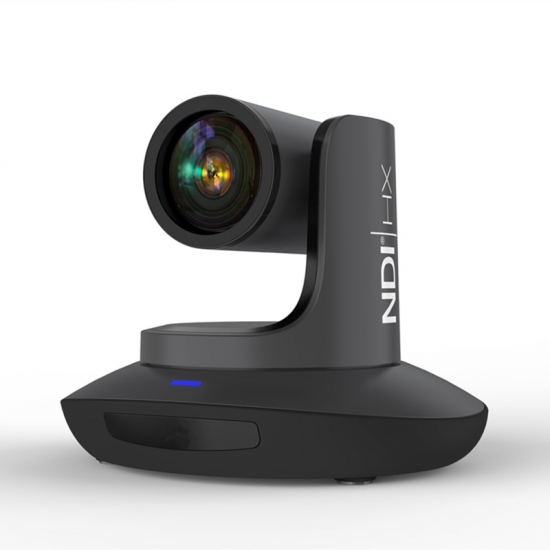

20X 1080P60 FHD NDI PTZ Camera

WINSAFE UHV-20X-IP-S(NDI) is a professional full HD video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, it has 20x optical zoom. NDI enables live streaming simpler, easier and affordable. No mess, an Ethernet cable enables video, audio, control, tally, and power. UHV-20X-IP-S(NDI) is a top-rated option used in professional live streaming solution, working with TriCaster, Wirecast, Vmix, OBS, Xplit etc, applied for Corporate, Class Room, Studio, and Professional AV environments.Exclusively for Enterprise Grade Live Streaming
  • item no.:

    UHV-20X-IP-S(NDI)
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black White Grey Sliver
  • lead time:

    3
  • Description
  • Information

Feature


※ Adopting the advanced ISP, 1/2.8 inch 5MP sensor, providing users crystal clear video
※ 20x optical zoom+2x digital zoom, 61 degree field of view,idea for large space AV solution
※ IP Video Streaming, includes both H.264, H.265 video encoding
※ 1080p30 full HD Video over NDI|HX, 3G-SDI, HDMI, USB output video simultaneously
※ WDR, 3D Noise Reduction feature
※ Power over Ethernet: one single CAT5/6 to get video, control, tally and power
※ Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ 128 presets
※ Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.
※ Daisy chain supported
※ Image flip function, support upside-down installation
※ Supplied with functional IR remote controller, can set IP address via OSD menu
※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system

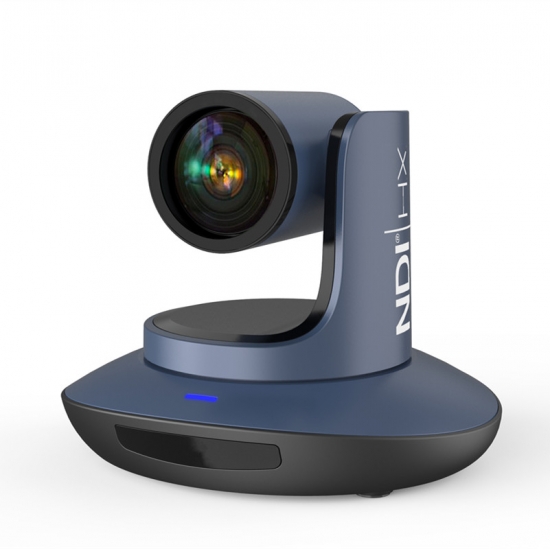

※ Optional enclosure color: silver, grey, black, white


Output Interface


Model No.

UHV-20X-IP-S(NDI)

Camera

Sensor

1/2.8" 5MegapixelCMOS Sensor

Video System

HDMI

NDI|HX

3G-SDI

USB

1920x10800p60/50/30/25
1280x720p60/50/30/25
1920x1080i60/50

Main Steam:
1920x1080p30
1280x720p30
Sub Steam:
1280x720@30
1024x576@30
640x360@30

1920x1080p60/50/30/25
1280x720p60/50/30/25
1920x1080i60/50

USB 3.0:
1920x1080p60/50/30/25
1280x720p60/50/30/25
1024x576p30
USB 2.0:
1024x576p30,960x540p30
640x360p30,352x288p30

Zoom

20x optical zoom + 2x digital zoom

View Angle

60.5°

F.no.

Wide: F1.5(Wide) - 3.0(Tele)

Focal Length

f=5.2(Near) - 98mm(Far)

Preset

10 via remote controller; 128 via serial port; preset precision:0.1°

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

  - 120° /s

Tilt Rotation Speed

  -  80° /s

Control Port

NDI|HX RS232 / RS485

Video Port

NDI|HX/3G-SDI/HDMI/USB3.0

Network Speed

1000M

Noise Reduction

2D & 3D

SNR

Above 50dB

Minimum Lux

0.01Lux

White Balance

Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

Image Flip

Supported

Iris

Auto/Manual

Electric Shutter

Auto/Manual

Backlight Compensation

Atuo/Manual

Focus

Auto/Manual

Video Encoding

H.264/H.265

Bit Rate Control

Variable BitRate, Constant Bit Rate

Video Bit Rate

1024Kbps - 20480Kbps

Frames

50HZ: 1fps - 30fps;  60HZ: 1fps - 30fps

IP Protocol

TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5

POE

Supported

Power

DC12V,2A

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)
