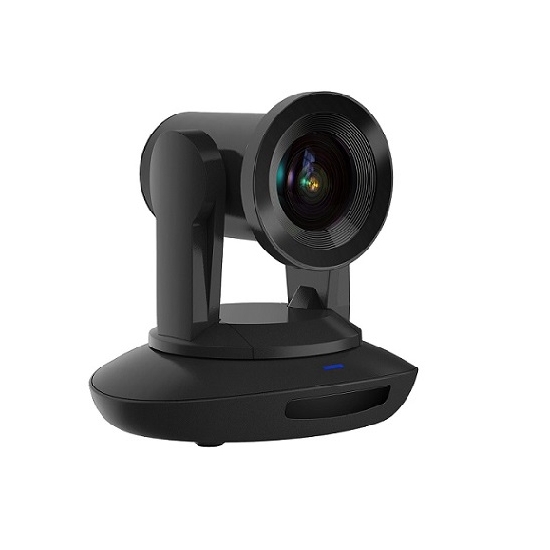

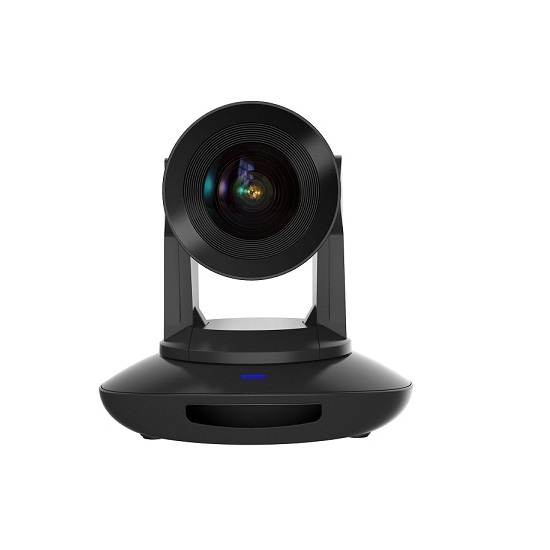

4K UHV 35X IP HDMI DVI USB 3.0 PTZ Video Conference Camera

UHV-500H is a professional grade 4K Ultra HD video camera, support IP, HDMI, SDI and USB3.0 simultaneously output ; with 35x optical zoom, meets with the application broadcast video production, high end video conferencing and video surveillance.

  • item no.:

    UHV-500-H
  • product origin:

    35x
  • color:

    2x
  • Description
  • Information

Feature


※ 3840X2160P30 ULTRA HD VIDEO RESOLUTION
※ Adopts most advanced ISP, 1/1.7" inch 12MP sensor, provide Ultra high definition crystal clear image with full details
※ 4K WIDE ANGLE OPTICAL LENS:35X OTPICAL ZOOM,60 DEGREEE FIELD OF VIEW
※ 4K VIDEO OVER IP, AND SUPPORT H.264,H.265 ENCODING
※ Meanwhile, HDMI, SDI, USB outputs as well, fit for different application
※ POE SUPPORTED
※ One single cable allows video transmission, camera control as well as power supply
※ HIGH PRECISE MOTOR POSITIONING
※ -170° to +170° pan rotation, -30° - 90° tilt rotation, quiet & smooth mechanism movement, accurate & fast focus, capture every details in whole space
※ STANARD SONY VISCA OVER SERIES AND SONY VISCA OVER IP SUPPORTED



3840x2160p30 ULTRA HD VIDEO RESOLUTION



4K WIDE ANGLE OPTICAL, 35X OPTICAL ZOOM,60° FIELD OF VIEW





 4K VIDEO OVER IP, SUPPORT H.264, H.265 ENCODING



HIGH PRECISE MOTOR POSITIONING






Specification


Model No.

UHV-500-H

Camera

Sensor

1/1.7" 12MegapixelCMOS Sensor

Video System

HDMI

IP

SDI

USB

3840x2160p30/25
1080p60/50/30/25
720p60/50/30/25
108i60/50

Main Steam:
3840x2160p30
1920x1080p60
Sub Steam:
1280x720,704x576
640x480,352x288

1080p60/50/30/25
720p60/50/30/25
1080i60/50

USB 3.0: 1080p60/50/30/25
                720p60/50/30/25
USB 2.0: 1024x576p30
                960x540p30
                640x360p30
                352x288p30

Zoom

35x optical zoom + 2x digital zoom

View Angle

2.02° (wide) - 60° (tele)

Focal Length

f=5.8(Near) - 203(Far)

SNR

Above 50dB

Minimum Lux

0.01Lux

Focus

Auto/Manual

Min.Focus Distance

Wide: 0.3m     Tele:1.5m

Iris

Auto/Manual

Iris No.

Wide: 1.5  Tele: 4.8

White Balance

Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor

Electric Shutter

Auto/Manual

BLC

ON/OFF

Noise Reduction

2D & 3D

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

PanTilt Flip

Supported

Anti Flicker

50Hz/60Hz/OFF

Video Freeze

Optional

Mechanical

Preset

10 via remote controller; 128 via serial port

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

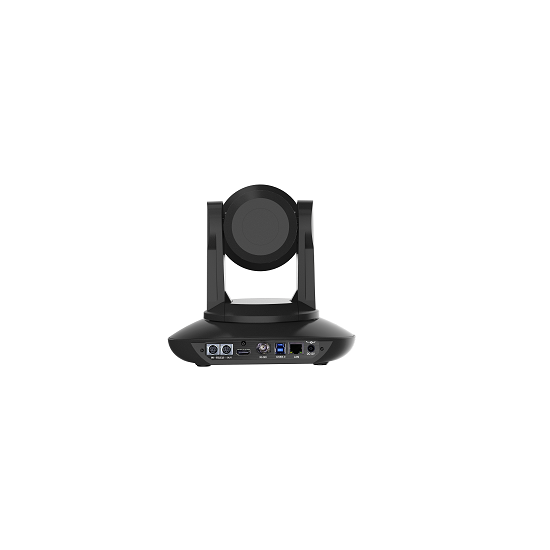

Port

Control Port

RS232(Sony Visca), RJ45(Onvif)

Video Port

HDMI/RJ45/SDI/USB3.0

Power

DC12V,2A

POE

Supported

Encoding

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps - 30720Kbps

Frames

50HZ: 1fps - 50fps;  60HZ: 1fps - 60fps (3840 x 2160 max.30fps)

IP Protocol

TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP

General

OSD Menu

English/Chinese

Dimension

220mm x 173mm x 117mm
