4K UHD USB 3.0 5X Optical Zoom Video Conferenceing PTZ Cameras

WINSAF UHV-300H-5 is a professional grade 4K UHD video camera, with premium industrial design and an Ultra-HD imaging system to provide you unmatched 4K cloud video conferencing experience.
  • item no.:

    UHV-300H-5
  • payment:

    T/T
  • product origin:

    China
  • color:

    Gray
  • shipping port:

    Shenzhen
  • Description
  • Information

Advantages


※ Adopts most advanced DSP,1/2.5 inch 8.5MP sensor
※ Class leading optical lens: 15xlossless HD zooom, 85  degree wide FOV
※ Ultra crystal 4K video via USB 3.0 port
※ Special Focus Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Visca Over IP, UVC control protocol
※ Supplied with function IR remote controller, can set IP address vis OSD menu
※ HTML5 supported multi-browser: IE,360, Chrome, Firefox, Safari, Opera etc.
※ Compatible with almost popular VC application


Feature


※ IP and USB 3.0 outputs simultaneously
※ 3840x2160p30 Ultra HD video resolution
※ Automatic access to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ WDR, 3D Noise Reduction feature
※ 128 presets
※ Image flip function, support upside-down installation
※ RJ45 support RTSP/RTMP video protocol, H.264,H.265 encoding
※ RJ45 support standard ONVIF protocol, can control by ONVIF keyboard
※ RJ45 support standard Visca over IP control
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ Sony Visca and Pelco P/D protocol

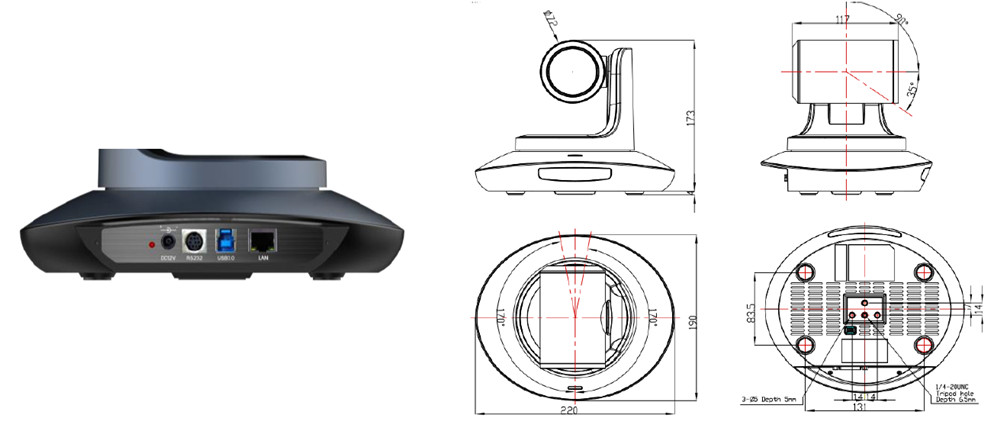

Inputy/Outpur Interface                                                           Dimensional Drawing(mm)

Model No.

UHV-300H-5

Sensor

1/2.5" 8.5Megapixel high quality CMOS Sensor

Video System

USB3.0

USB2.0

IP

MJPG:
3840x2160p30
1920x1080p30
1280x720p30
1024x576, 960x540
800x600; 640x480
640x360; 512x288

YUY2
1080p60/50/30/25
720p60/50/30/25
1024x576p30,  960x540p30
800x600p30,  640x480p30
640x360p30,  512x288p30

MJPG:
3840x2160p30
1920x1080p30
1280x720p30
1024x576, 960x540
800x600; 640x480
640x360; 512x288

YUY2
960x540p30
800x600p30
640x480p30
640x260p30
512x288p30

Main Stream:
1920x1080p30
1280x720p30

Sub Stream:
1280x720p30
1024x576p30
640x360p30

Zoom

5X(4K), 15Xlossless HD zoom(1080p and lower)

FOV

26.5°(near)  - 85°(far)

F.no.

Wide: 2      Tele: 2.8

Focal Length

f=2.8(tele) - 14mm(far)

Preset

10 via remote controller; 128 via serial port; preset precision: 0.1°

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Control Port

RS232/RS485/RJ45/UVC

Video Port

RJ45/USB3.0/USB2.0

Network Speed

1000M

Noise Reduction

2D & 3D

SNR

Above 50dB

Minimum Lux

0.01Lux

White Balance

Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor/Indoor

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

PanTilt Flip

Supported

Iris

Auto/Manual

Electric Shutter

Auto/Manual

BLC

Auto/Manual

Focus

Auto/Manual

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps - 30720Kbps

IP Protocol

TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP

POE

Supported

Input Voltage

DC12V, 2A

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)
