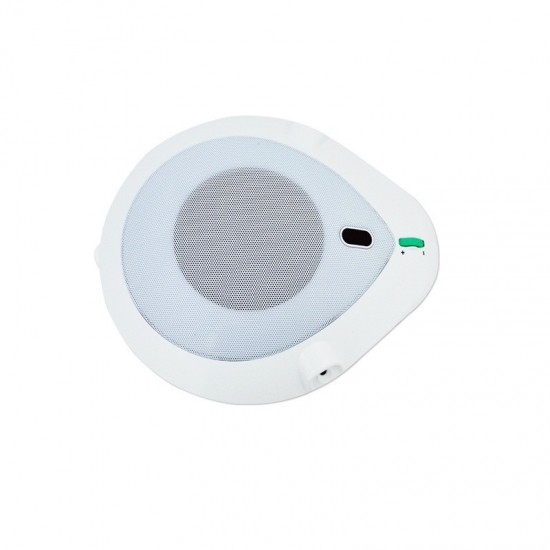

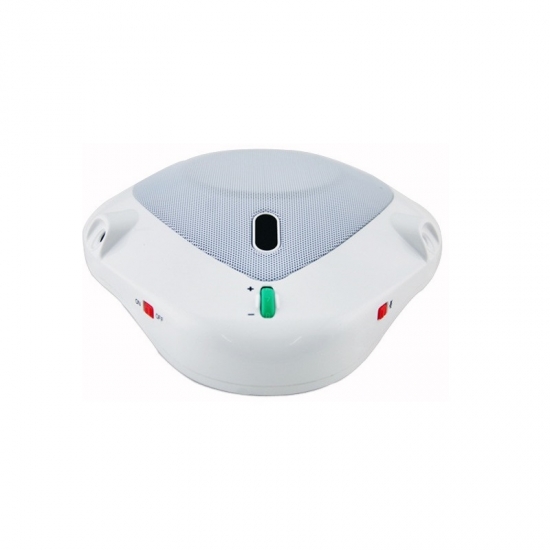

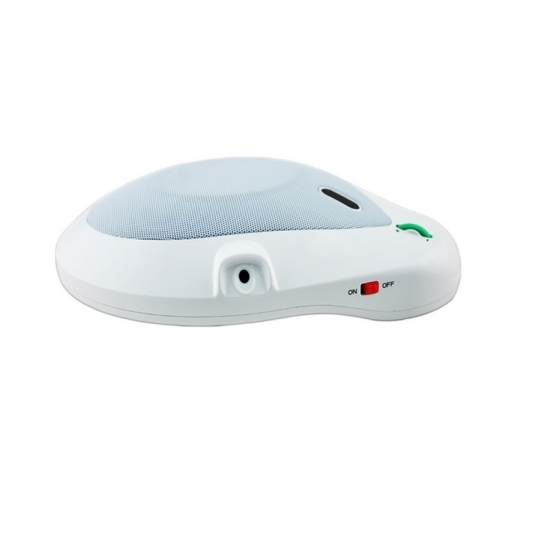

Hot Sale USB Digital Array Microphones

WS-AM2 is designed to capture clear audio for web conferencing, court and so on. Thanks to its USB connectivity, it is ideal to use for board room and middle meeting room. Best audio can be delivered a full 360 degree with max 85db volume output.


  • item no.:

    WS-AM2
  • payment:

    T/T, L/C, West Union, Paypal, Cash
  • product origin:

    China
  • color:

    White/ Black
  • shipping port:

    N/A
  • lead time:

    290
  • Description
  • Information

Feature



※ Universally compatible with most Internet communication applications such as Skype, Google Talk, Windows Live Messenger
    (MSN),Yahoo!Messenger, AOL, iChat and VoIP systems (i.e. Microsoft Office Communicator, Avaya solutions, etc)
※ Plug and Play, Free set immediately call
※ Compatible with real-time communication software, and VoIP software, all kinds of video conferencing software
※ 16 KHz sampling sound quality, loud and clear sound, long talk reliable
※ Built-in high-end intelligent DSP high-speed full-duplex echo processing engine, two-way echo elimination
※ In addition, automatic filtering of background noise, not noise
※ full-duplex transmission mode, even when listen to can still be speak at the same time , most close to the real communication
※ 360-degree Omni-directional high sensitivity microphone, a radius of 4 meters are free to move around and make a call
※  A ural reception has no dead ends.
※ LED status lights, use different color ring on behalf of calls, in call, call mute state, all states at a glance
※ Switch the speaker headset, if visual occasion required, were suitable for multi-part or private conversation.

Specification


Model No.

WS-AM2

Interface

USB2.0 Full Speed Interface

Max. Power

3W

Power Supply

USB Power Supply (5V/500mA)

Radio Interference Standard

VCCI level B

Working Temperature

0°C - 40°C

Working Humidity

20 - 85%(no frost)

Product Size

255x 220x 55mm (L x W x H)

Packing Size

335x305x 105mm (L x W x H)

Weight

Net: 780g / Packing: 1300g

Color

White/Black

Computer Environment

Windows 10 (64bit/32bit), Windows (8.1 * 64bit/32bit), Windows 8 (64bit/32bit), Windows 7 (64bit/32bit), Windows Vista SP1 (32bit), Windows XP SP2 (32bit), Windows 2000 SP4, Mac OS X 10.5 (only equipped with Intel processor machine)

Accessories

USB cable(2.0m), Manual, Portable Bag

Speaker

1(mono cycle)

Volume

Max 85dB(0.5M)

Frequency Bandwidth

300 - 20,000Hz

Microphone

High Sensitivity Omnidirectional Microphone

Signal Processing

Adaptive echo canceller, noise reduction, 3 Alternative Mic Auto Adjustment
