USB Lecturer Tracking PTZ Cameras

WINSAFE USB Lecturer Tracking camera adopts the most state-of the art face recognition and motion tracking technology, it can precisely lock and track the lecturer, IP,3G-SDI,DVI &USB3.0 video output giving more flexibility to work with different recording solution.
  • item no.:

    LTC-A1202
  • Description
  • Information

Feature


USB 3.0 Output

Precise lock and track capability

Unmanned and standalone tracking

Smart tracking performance

Board writing triggers tracking

Easy connection, configuration and communication

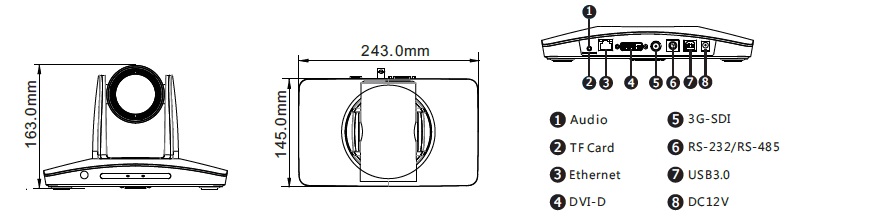

Dimensions

Application


Specification


Model No.

LTC2-A1202

Tracking Camera

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Lens

f=3.9mm-46.8mm; F1.6-F2.8

Zoom

Optical:12X, Digital:12X

Field of View

72.5° - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One Push

Mini.illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

Gain

Auto / Manual

White Balance

Auto,Indoor, Outdoor, One Push, Manual, Automatic Tracking

AE Control

Auto, Manual, Shutter Priority, Iris Priority

S/N Ratio

Above 50dB

Full View Camera

Image Sensor

1/2.8" Exmor CMOS

Effective Pixel

2.15MP

White Balance

Auto

Exposure

Auto

Field of View

Horizontal:86°; Vertical"52°

Lens

2.4mm

PTZ

Pan/Tilt Angle Range

Pan: -170°  - +170° ; Tilt: -30°  - +90°

Pan/Tilt Speed

Pan: 0.1°  - +120°/s ; Tilt: 0.1°  - +90°/s

Preset Number

256

Control Interface

RS232/RS485/USB3.0

Ethernet

RJ45,100M

Control Protocol

PELCO-D / VISCA / UVC

Network

Image Resolution

1920x1080 @ 60fps

Frame Rate

1080P60/1080P50/1080P30/108025
1080I60/1080I50/720P60/720P50

Video Compression

H.264

Audio Compression

AAC

Protocol

ONVIF / RTSP / RTMP / TCP / UDP

Dual Stream

Support

Video Interface

3G-SDI / DVI-I / USB3.0

General

Power Supply

DC12V

Power Consumption

20W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm(L) x 245mm(W) x 163mm(H)

Weight

1.2KG
