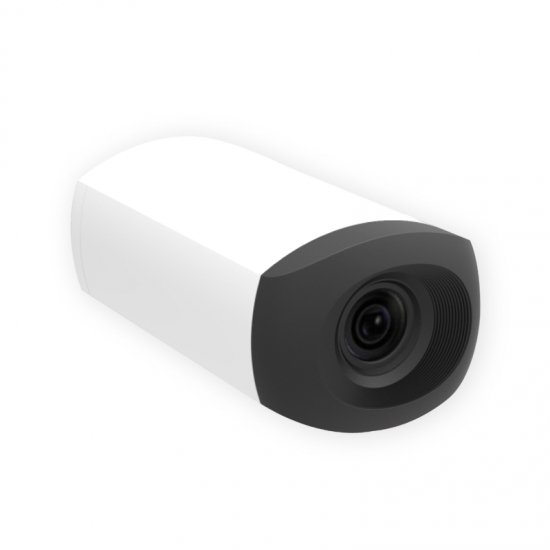

HD 1080P IP + SDI 3X/5X Optical Integrated Camera

ZC5 Sereise IP + SDI 3X/5X Integraed camera with high quality, new design, good used in recording classroom and small video conference room.

  • item no.:

    ZC5-A2814N
  • payment:

    1/2.8
  • product origin:

    20X
  • color:

    20X
  • lead time:

    170
  • Description
  • Information

Feature


※ H.265 video compression,dual stream
※ 1/3" CMOS,2.14MP
※ Up to 5x opitcal zoom
※ Support various control modes, including network, remote control, RS232 & RS485 control, and local button control
※ Support SDI and RJ45 output interface, can output 1080p images simultaneously
※ Support H.264 video compression, support up to 1080p30, and with low network latency
※ Support 2 audio inputs, with ACC audio compression
※ Compatible with HTTP, RTSP,RTMP, ONVIF protocols

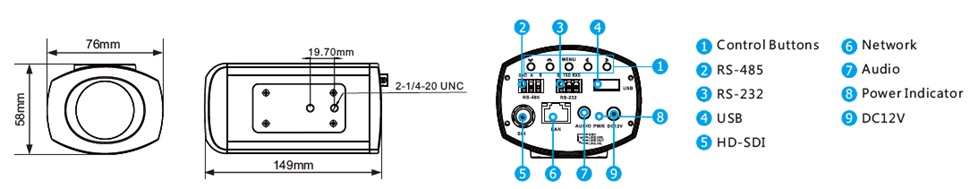

Dimensions




Accessories



Specification


Model No.

ZC5-A2814N

ZC5-A0722N

Camera

Image Sensor

1/3" CMOS, 2.14MP

Focal

2.8mm - 14mm

7mm - 22mm

Effective Pixel

1920 x 1080

Optical Zoom

5X

3X

Field of View

98° - 40°

33° - 15°

Focus

Auto / Manual

Min.Illumination

0.5Lux

White Balance

Auto

Exposure

Auto

Control Buttons

5

Video Output

1080P30 / 1080P25 / 720P60 / 720P50

Network

Max.Image Size

1920 x 1080@30fps

Video Compression

H.264

Audio Compression

ACC

Protocol

HTTP / RTSP / RTMP / ONVIF

Dual Stream

Support

Simultaneous Users

up to 10 users

Ethernet Interface

100M(RJ45)

Interface

Video Interface

3G-SDI

Audio Interface

3.5mm Audio Interface(2 Line in / 1 Line out)

Comm.Interface

RS-232,RS-485

General

Protocol

VISCA

Power Supply

DC 9V-12V

Power Consumption

Below 5W

Working Temp

- 40°C - +60°C

Dimension

149mm x 76mm x 58mm

Weight

0.42kg

Color

White
