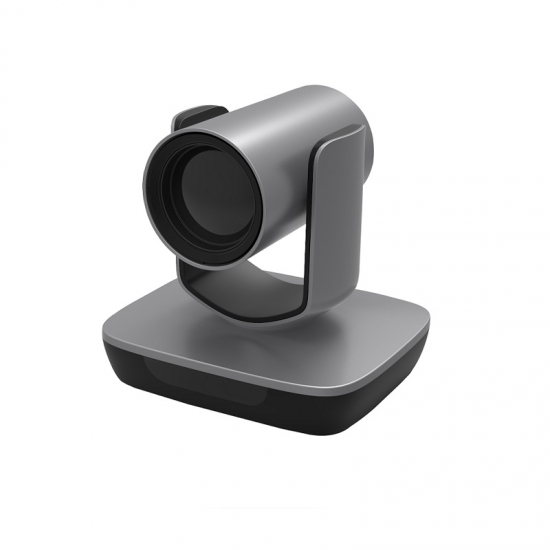

Lecturer Tracking PTZ Camera LTC5

Tracking is based on industry-leading deep-learning technology to precisely detect and track lecturer, supporting IP control and preview, optional POE. Smooth tracking performance, free from interference of other moving objects, even if the target turns around, stands still for a  long time or other small gestures will not affect the tracking effect.Track lecturer all around the classroom, even if lecturer walks into student area.Auto adjust as per the height of lecturer


  • item no.:

    LTC5-A2001N
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information

Intelligent Tracking


* Smooth tracking performance, free from interference of other moving objects, even if the target turns around, stands still for a  long time or other small gestures will not affect the tracking effect
* Track lecturer all around the classroom, even if lecturer walks into student area
* Auto adjust as per the height of lecturer


Rich Interface


* Support HDMI, 3G-SDI, Ethernet, USB up to 1080p60 video outut
* 1 channel audio LINE IN, AAC compression
* Optional POE


IP & NDI Implemention


* H.265/H.264 video compression
* Support dual steam
* NDI®|HX supported


Dimensions



Accessories


Model No.

LTC5-A2001N

Tracking Camera

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Focal Lens

f = 5.2 - 98mm

Zoom

Optical: 20X, Digital: 12X

Iris

F1.5 - F3.0

Field of View

59.5°  - 2.9°

Focus

Auto, Manual,  PTZ Trigger, One Push Trigger

Shutter Speed

1/25 - 1/10,000s

Gain

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Auto Tracking

Exposure Control

Auto, Manual, Shutter Priority, Iris Priority

S/N Radio

Above 50dB

PTZ

Pan/Tilt Angle Range

Pan: -170°  - +170° ; Tilt: -30°  - +90°

Pan/Tilt Speed

Pan: 0.2°  - +120°/s ; Tilt: 0.2°  - +90°/s

Preset Number

64

Video Output

Video Format

1080P60/50/30/25, 720P60/50

Network

Max.Image Size

1920x1080 @ 60fps

Image Compression

H.264/H.265

Audio Compression

AAC

Protocol

ONVIF, RTSP, RTMP, HTTP, TCP, UDP

Dual Stream

Support

USB

USB Interface

USB2.0 Type-A

UVC, UAC

Support

Video Interface

H.264/MJPEG

Image Size

1920 x 1080, 1280 x 720, 640 x 360

Interface

Video Interface

HDMI 1.4/3G-SDI

Network Interface

RJ45(100M) interface, optional POE

Control Interface

RS232

General

Protocol

VISCA, PELCO-P, PELCO-D

Address

0 - 63

Power Supply

DC12V

Power Consumption

<15W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Operating Humidity

10% RH - 90%RH

Dimension

176mm x 136mm x 169mm

Weight

1KG
