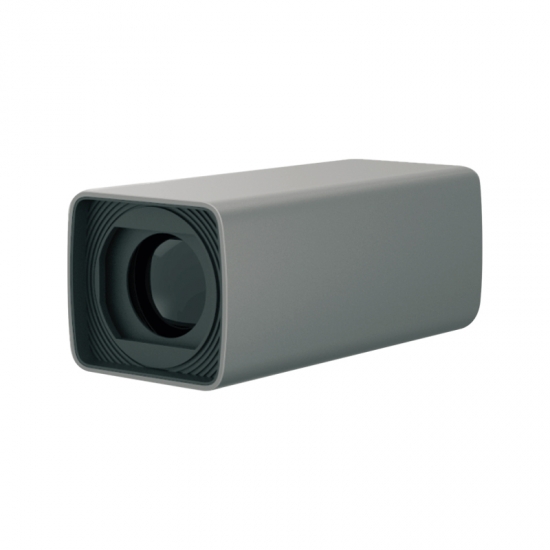

HD 1080P IP + SDI 20X Optical Integrated Camera

ZC4 Sereise IP + SDI 20X Integraed camera with high quality, new design, good used in recording classroom and big video conference room.

  • item no.:

    ZC4-A2001N
  • payment:

    1/2.8
  • product origin:

    20X
  • color:

    20X
  • lead time:

    170
  • Description
  • Information

Feature



H.265 video compression, dual stream

2.14MP,1/2.8" Exmor CMOS

Support various HD video formats

Has 3G-SDI output interface

20X Optical zoom, 12X digital

With OSD menu

With RS485 & RS232 control interface

Has image flip function

Has 5 buttons at back panel for easy configuration



Dimensions


Accessories



Specification


Model No.

ZC4-A2001N

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

HD Signal Format

1080P/60,1080P/50,1080P/30,1080P/25,1080I/60;720P/60,720P/50,720P/30,720P/25

WDR

Yes

Focal

f =4.7mm -94.0mm

IRIS

F1.6 - F3.5

Zoom

Optical: 20X, Digital: 12X

Field of View

59.5°  - 2.9°

Focus

Auto, Manual,  One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Auto Track,

AE Control

Auto, Manual, Shutter Priority, Iris Priority

BLC

Yes

S/N Radio

Above 50dB

Preset Number

256

OSD

Yes

Image Flip

Yes

Noise Reduction

2D/3D

Network

Max,Image Size

1920x1080 @60fps

Video Compression

H.265,H.264

Audio Compression

AAC

Protocol

HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF

Dual Stream

Support

Simultaneous Users

up to 10 users

Interface

Video Output

3G-SDI

Ethernet

RJ45,100M

Control Interface

RS-232,RS-485

General

Protocol

VISCA and PELCO-D, PELCO-P

Spectra Address

1~7(VISCA),0-255(PELCO-D/PELCO-P)

Power Supply

DC12V

Power Consumption

<15W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

170mm x 80mm x 70mm

Weight

0.83KG

Color

Grey
