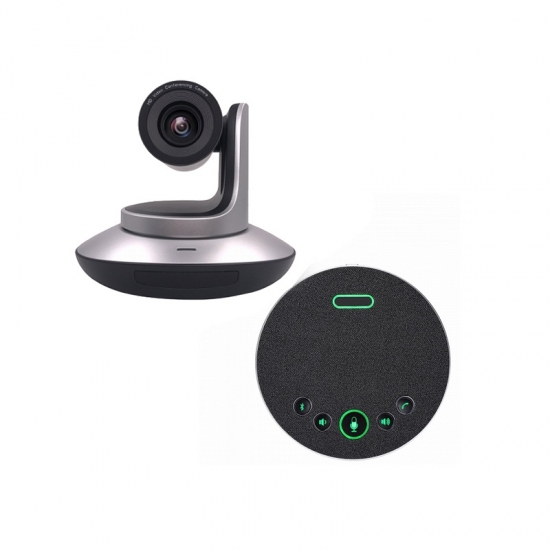

All-in-one video conferencing device 20X PTZ Camera & USB Microphone

WINSAFE UHV-HU2-20MCP with 20X USB2.0 + HDMI PTZ Video Camera & USB microphone let your conference with Crystal clear video and perfect audio.

item no.:
UHV-HU2-20MCP
payment:
T/T
product origin:
China
color:
Black/Sliver
shipping port:
Shenzhen

contact now

Description
Information
Downloads

Camera Information

Advantages

* Crystal Image: with latest Advanced ISP, 1/2.8 inch SONY sensor and high quality 20x optical lens
* Fast and accurate focus performance
* Easy firmware upgrade-(field-upgradable)
* Compatible with almost video conferencing software(UVC1.5 protocol standard)
* Functional IR remote control
* Power via USB type C port

Feature

* Zoom: 20X Optial Zoom & 4X Digital Zoom
* 60° degree field of view
* USB & HDMI simultaneously output, can set independent resolution
* HDMI output up to 1920x1080p60 Full HD
* Smart USB2.0 type C output, support multiple compress video format, max. output MJPG 1920X1080P60, adapt to different video application
* USB2.0 compatible with Windows, MAC OS, Android, Linux, Google Chrome and more
* Image flip function support upside-down installation
* Accurate pan tile motor control, ultra smooth PTZ movement
* Up to 128 presets
* Support RS232, RS485 serial control
* Standard Sony Visca and Pelco P/D protcol
* Support WDR, 3D-Noise Reduction function
* Adjustable lens parameters: Brightness, Contrast, Color, Resolution, Gama, AutoGain etc.
* Both ARM & ISP firmware can be easily upgraded via USB type C port

USB Microphone Infomation

Feature

➤ Suitable for meeting rooms with 40 squaremeters, support online meetings with less than 10 people

➤ Built in 2 high fidelity omnidirectional microphones to achieve 360° omni-directional sound pickup, the maximum audio radius can be up to 5 meters

➤ Intuitive plug and play connectivity that connect in Seconds to laptop and tablet via USB Type-C, bluetooth to mobile phone and PAD ➤ Works with UC, Video conferencing and cloud communication apps such as ZOOM, Vidyo, Webex, Skype for Business, Google hanout and so on

➤ Support Multiple systems: Windws, Mac OS, Android, Linux, etc

USB2.0 + HDMI 20X PTZ Video Camera Specification

Model No.	UHV-HU2-20
Video Port	HDMI, USB2.0 Type-C
Video Resolution	HDMI: 1080P60/50/30/25; 720P60/50/30/25
Video Resolution	USB Type-C: MJPE: 19201080P60; 1280720P60; 1024576P60; 640480P60;640360P60 YUY2: 640480P30; 640360P30; 480640P30; 360*640P30
Image Sensor	1/2.8 inch high quality, 2.4MP CMOS Sony sensor
Zoom	20X optial zoom + 4X digital zoom
Field of Viewing	60°(wide) - 3.2°(tele)
Focal Length	f=3.92(near) - 47.32mm(far)
Iris	F1.5 -3.0
Pan Rotation Angle	-170° - +170°
Tilt Rotation Angle	-30° - +90°
Pan Rotation Speed	0° - 120°/s
Tilt Rotation Speed	0° - 80°/s
Preset	128 via Visca, 10 via IR remote
S/N Ratio	Above 50dB
Minimum Lux	0.01Lux
White Balance	Auto / Manual / Indoor / Outdoor / Sodium Lamps / Fluorescent Lampls
Focal Mode	Auto / Manual / Push
2D&3DNR	Supported
WDR	Supported
Anti-Flicker	50HZ/60HZ/OFF
Input Voltage	5V 1000mA(via USB type C) / DC12V 2A(via Power Adapter)
Dimension	220mm x 190mm x 173mm
Net Weight	1.25kg(2.8LB)
Accessory	Power adapter, Power cable, 3m USB Type-C cable, manual, warranty card
Color	Black/Silver/Grey/White

USB Microphone Specification

Model No.	WS-AM13B
Covering Area	<40㎡
Connection type	10-15 paticipants
Micophone Numbers	Built-in 2x Microphone Array
Microphone Pickup Distance	5 meters
Bluetooth Connection	Yes
Sensitivity	-29dBFS
Microphone/Speaker Frequency response	100Hz - 22kHz
Directivity	Omni-directional
Noise Level	95dBA
Full-duplex echo cancellation	Support
Echo tail length	≥500ms
Bluetooth version	V5.0
Battery	Built in 2400mAH
Battery Charging time	3 Hours
Call time	6-9 hours
Standy time	50 days
Bluetooth version	V5.0
Battery	3 hours
Call time	6 - 9 hours
Standy time	50 days
Ports	1 x Type-C, 1 x 3.5mm audioport
Working temperature	0° to 50°C
Power supply	USB: 5DC @ 500mA Maximum
Speaker	3W full band speaker
Software	PolyCom, Blue Jeans, cisco, Vimix, Golomeeting, Radvision, SeeVogh, WebEx, Easy meeting, Vidtel and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO etc.
Operation Systems	Windows7, Windows 8.1, Windows 10; Mac OS 10.10 or higher, Android
Noise suppression	Support
Gain control	Support
Max. Output	110dB
Product Dimension	160mm x 160mm x 38mm
Warranty	3 years

Tags : Best webcam for video conferencing Top conference cameras for small rooms USB plug and play meeting camera Noise cancelling conference microphone Affordable video conferencing equipment PTZ camera system with microphone
