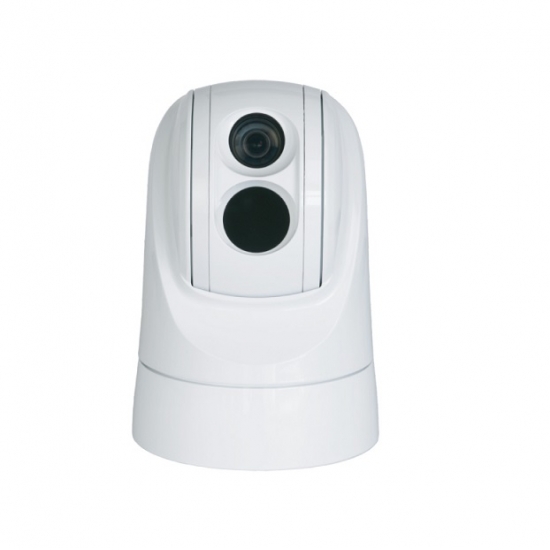

PATC F Series Dual Payload Thermal Maritime Standard Rugged PTZ Camera with Martime Keyboard Control

Now our PATC-F series dual payload thermal ptz camrea is a maritime standard ruggedized thermal vision system, housed with aluminum, the camera is anti-corrosive and IP67 rated, enabling it to work properly even in tough sea environment.
The camera incorporates a 640x480/380x288 uncooled thermal core and a 20x day light camera, added its radar tracking, digital stabilization,25hz/30hz continuous thermal imaging capability, easy control with maritime keyboard controller, making the camera a perfect system to assist mariners to safely navigate.
  • item no.:

    PATC-FZ640S2008GT
  • product origin:

    20X
  • color:

    12X
  • shipping port:

    IP67
  • Description
  • Information
Now our PATC-F series dual payload thermal ptz camrea is a maritime standard ruggedized thermal vision system, housed with aluminum, the camera is anti-corrosive and IP67 rated, enabling it to work properly even in tough sea environment.

The camera incorporates a 640x480/380x288 uncooled thermal core and a 20x day light camera, added its radar tracking, digital stabilization,25hz/30hz continuous thermal imaging capability, easy control with maritime keyboard controller, making the camera a perfect system to assist mariners to safely navigate.

Radar Tracking

PATC-F Series camera recives, reads, analyzes NMEA0183 strings from Radar and manages algorithm calculation from current vessel position to target(s), finally camera move to view the gargets actively.

Digital Stabilization

The in-built digital stabilization system is able to compensate vertical angels to stabilize images, enabling the camera to perform well even in rough weather conditions

Continuous Thermal Imaging

The uncooled 640x480/384x288 thermal core is with 25hz/30hz, provides clear and continuous thermal images.

Indicators On Thermal & Daylight Images

Position indicators, status and scene icons are displayed on both thermal & daylight cameras,providing direct and exact information to assist navigation.

Image Freeze Capability On Thermal & Daylight Images

Both cameras support to freeze images on demand, enable to view more details of specific images

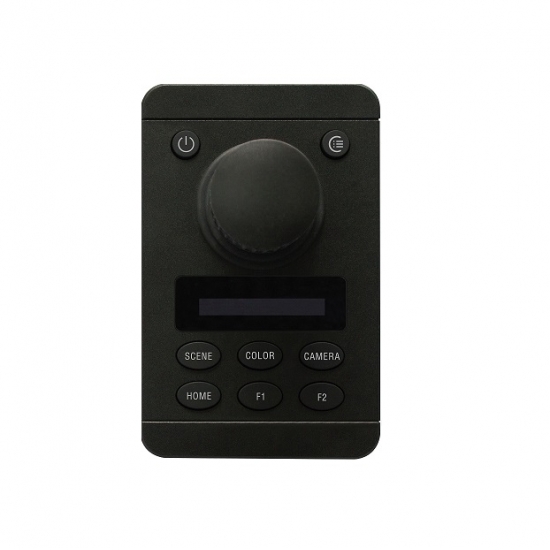

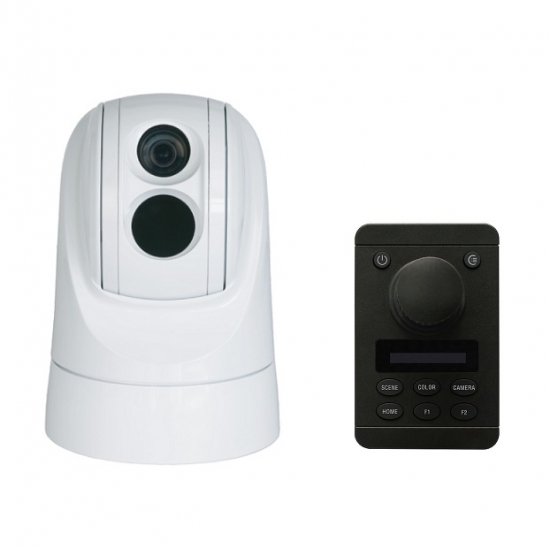

Ethernet & Serial Control Via Keyboard Controller

Optional maritime keyboard controller has both Ethernet and RS485 interfaces to control the camera, the controller is used to pan tilt and zoom the camera, operate the camera functions with its buttons and OSD menus,and also move the camera into or out of standby mode.

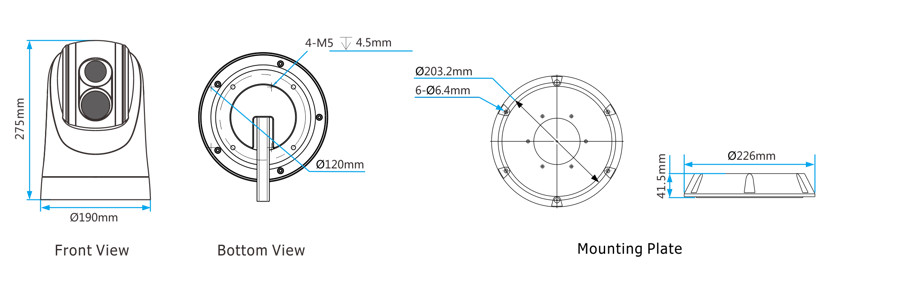

Dimensions(mm)


Application





Model No.

PATC-FZ319S3002GT

PATC-FZ340S3002GT

PATC-FZ619S3002GT

PATC-FZ640S3002GT

Thermal Imaging Camera

Sensor Type

Uncooled Amorphns Silicon FPA

Working Band

8μm~14μm

Resolution

384 x 288

640 x 480

Sensor Size

17μm

NETK(300K)

≤60mk

FOV

19mm:19.5° x 14.7°

40mm:9.3° x 7°

19mm:32.0° x 24.2°

40mm:15.5° x 11.6°

Detecting Range

Vehicle:2570m Man:550m

Vehicle:5400m Man:1170m

Vehicle:2570m Man:550m

Vehicle:5400m Man:1170m

Recognition Range

Vehicle:640m  Man:130m

Vehicle:1350m Man:290m

Vehicle:640m   Man:130m

Vehicle:1350m Man:290m

Video Display

Black Hot / White Hot

White Hot / Black Hot /Color Palettes

Digital Zoom

1X,2X,4X

Daylight Imaging Camera

Video Sensor

1/2.8" SONY "Exmor R" CMOS, 2.13 Megapixel

Zoom

Optical: 30X; Digital:12X

Lens

f = 4.3mm - 129mm, F1.6.-F4.7

View Angle

63.7°(wide) - 2.3°(tele)

Min.Illumination

Color: 0.35Lux; Mono:0.013Lux

S/N Ratio

Not less than 50dB

WDR

On/Off

BLC

On/Off

DNR

1 - 5 Step/Off

Day / Night

Auto/Manual

Pan Range

 360° Continuous

Pan Speed

 Control speed: 0.04° - 100°/s;  Preset speed: 100°/s

Tilt Range

 -15° - 90°(Auto Flip)

Tilt Speed

 Control:0.04° - 90°/s, adjustable; Preset Speed: 90°/s

Preset

 256

Preset Precision

 ±0.2°

Digital Stabilization

Single Axis vertical stabilization

Network

Daylight Cam Resolution

PAL: 1080p25, 720p50,720p25; NTSC:1080p30,720p60,720p30

Thermal Cam Resolution

PAL: 720 x 576; NTSC: 720 x 480

Video Compression

H.264

Network Protocols

HTTP, RTSP,TCP,UDP,ONVIF

Simultaneous Live View

Up to 10

Dual Stream

Support

Video Interface

Dual SDI / Dual CVBS

General

Control Interface

RS-485

Adress

0 - 255

Comm Protocol

PELCO-P/PELCO-D(Self-Adaptive)

Baud Rate

2400bps, 4800bps,9600bps,19200bps(Self Adaptive)

Voltage

DC 10.8 - 32V

Power

35W/50W

Working Temperature

 -25°C - +55°C

IP Code

IP67

Dimensions

Φ190(mm) x 275(mm)

Weight

6.3±0.1Kg
