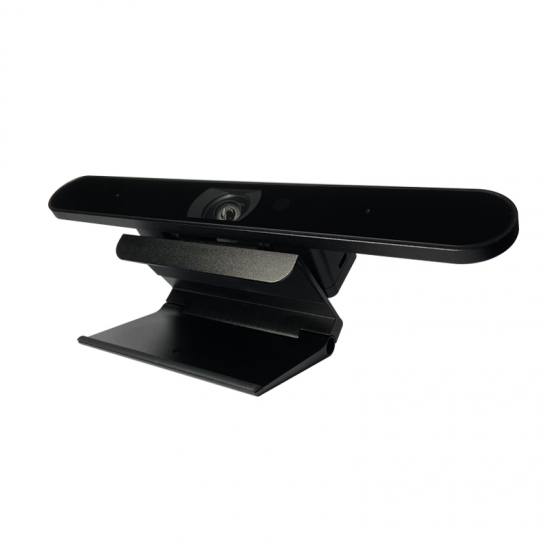

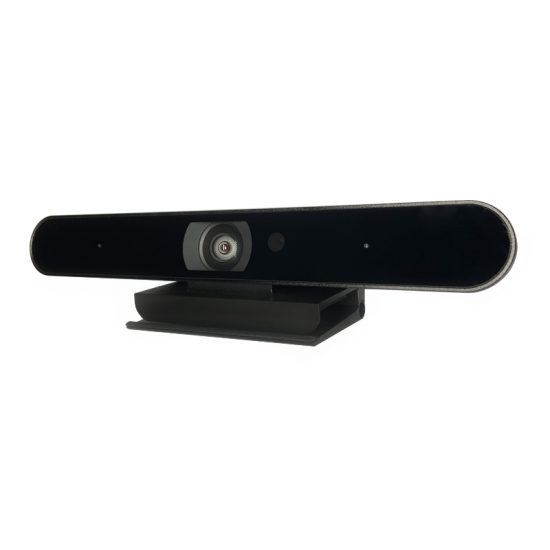

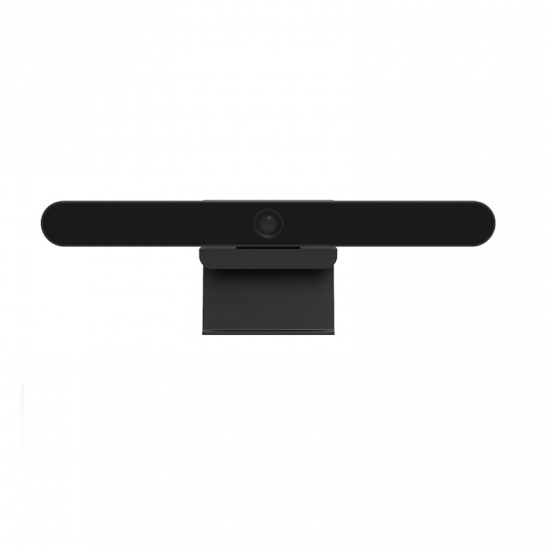

4K ePTZ Webcam with Auto Fram

MZC-F22UV5 are 4K ePTZ Webcam with Auto Fram,  it  helps to achieve intelligent meeting experience, implemented with intelligent video analysis and EPTZ technology, it can automatically frame meeting participants in the room, and it fres of camera operation during a meeting and enables meeting attendees to focus more on discussion.
  • item no.:

    MZC-F22UV5
  • payment:

    T/T, WestUnion
  • product origin:

    China
  • color:

    Black
  • lead time:

    3
  • Description
  • Information
  • Downloads

Feature

※ 1/2.8" CMOS, 8.57MP, up to 3840x2160@30fps
※ 2.2mm focal lens, up to horizontal 110°FOV, no distortion
※ USB power supply, USB type C interface
※ Compact design, thinkness of the camera is less than 40mm, side entry USB cable, suitable for ultra-thin TV installtion
※ Integrated with video analysis algorithm, able to automatically detect and frame meeting participants using EPTZ technology


Dimension

Model No.

MZC-F22UV5

HD Camera

Image Sensor

1/2.5" CMOS, 8.57MP

Signal Format(SDI)

Max: 4K@30fps

Focal Lens

2.2mm

Iris

F2.4

Field of View

Horizontal 110°

Min.illumination

1Lux @ (F1.8, AGC ON)

Shutter Speed

1/60 - 1/10,000s

White Balance

Auto, One Push

S/N

Above 50dB

DNR

2D/3D

BLC

Support

OSD

English

USB

OS

Windows XP/7/8/10,Linux, Mac OS, Android OS

Video Interface

USB3.0 TypeC

Reslution

MJPG: 1920X1080, 1280X720, 640X480, 320X240
H.264: 3840X2160, 1920X1080, 1280X720, 640X480, 320X240

UVC Protocol

USB2.0/UVC 1.0 - UVC1.4

UVC PTZ Control

Support EPTZ

Output Interface

USB Interface

USB 3.0 TYPE-C

General

Power Supply

5V(USB)

Power Consumption

Below 4.5W

Working Temperature

 0°C - +40°C

Store Temperature

 -20° - +60°

Dimension(L x W x H)

208mm x 34mm x 56mm

Weight

0.4kg
