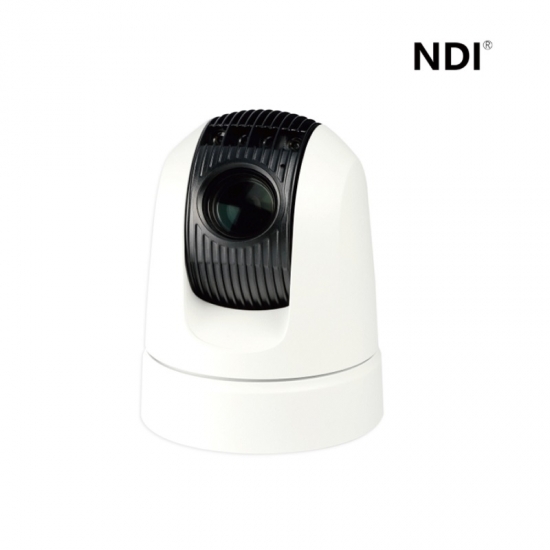

AC3 1080P NDI Camera for Outdoor

Network Device Interface(NDI®) is a high performance standard that allow anyone to use real time, ultra low latency video on existing IP Video network, our AC3-NS3003N 1080p camera for outdoor, in different live steaming enviroments, for aaplications of HD video capture, such as lecture capture, events broadcasting,  house of worship, telemedicine etc.
  • item no.:

    AC3-NS3003N
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    White Black
  • Description
  • Information

Outdoor Performance


No worry about a tough environment. The camera is designed for outdoor applications. IP66 feature builds confidence for live streaming in bad weather. The robust aluminum housing protects the camera from accidental shocks and vibrations.


30X SONY HD FCB Block


The 30X SONY HD FCB block camera delivers incredible HD video, with amazing color reproduction, superb details of your moments.


Feature


NDI®|HX supported; 1/2.8” EXMOR CMOS, 2.13MP, 30X optical zoom; Up to 1080P30 output; H.265, H.264 video compression, dual stream; IR/White lighting system, rang up to 60 meters; TF card for local storage; 10.8-28V voltage input; Auto power-off with low power supply.


Dimensional Drawing






Model No.

AC3-NS3003N

Camera

Image Sensor

1/2.8" Exmor CMOS, 2.13MP

Active Pixel

1920(H) x 1080(V)

Video Standard(HD)

1080p30,1080p/25,720p/60,720p50,720p/30,720p/25

Signal System(SD)

PAL/NTSC

Min.Illumination

Color: 0.0013Lux; B/W:0.0008Lux

WB

Auto

Focus

Auto/Manual

Exposure

Auto/Manual

S/N Ratio

Not less than 50dB

BLC

On/Off

WDR

On/Off

Digital Noise Reduction

1 - 5 Steps/Off

Digital Image Stabilization

No

D/N ICR

Auto/Manual

Lens

Optical Zoom

30X

Digital Zoom

12X

Focal

f = 4.3mm - 129mm

IRIS

F1.6 - F3.5

View Angle

63.7°(H) - 2.3°(V)

PTZ

Pan Range

360° Continuous

Pan Speed

Control Speed: 0.1° - 60°/s, adjustable; Preset Speed: 60°/s

Tilt Range

 -15° - 90°(Auto Flip)

Tilt Speed

Control Speed: 0.2° - 60°/s, adjustable; Preset Speed: 60°/s

Preset

256

Preset Precision

 ±0.2°

IR Light

Wave Length

850nm

Range

60m

Switch

Auto

Network

Image Resolution

Max: 1920 x 1080@30fps

Image Compression

H.264, H.265

Audio Compression

AAC

Protocols

HTTP, RTSP, TCP, UDP, ONVIF

No. of User's Access

Up to 10

Dual Stream

Support

Interface

Audio Interface

1 Line in, 1 Line out

Video Output(SD)

CVBS1.0Vp-p/75Ω, PAL or NTSC

Ethernet Interface

10/100M(NDI | HX)

Comm. Interface

RS-485

General

OSD

English

Address

 0 - 255

Comm. Protocol

Pelco-P/Pelco-D(Self-Adaptive)

Baud Rate

2400bps, 4800bps, 9600bps,19200bps(Self-Adaptive)

Voltage

DC10.8 - 28V

Power

Min: 9W; Max:20W

Working Temperature

 -25°C - 65°C

IP Index

IP66

Dimension

Φ136(mm) x 185(mm)

Weight

2.1Kg
