Dual lens IP PATC Thermal Imaging HD SDI PTZ Cameras

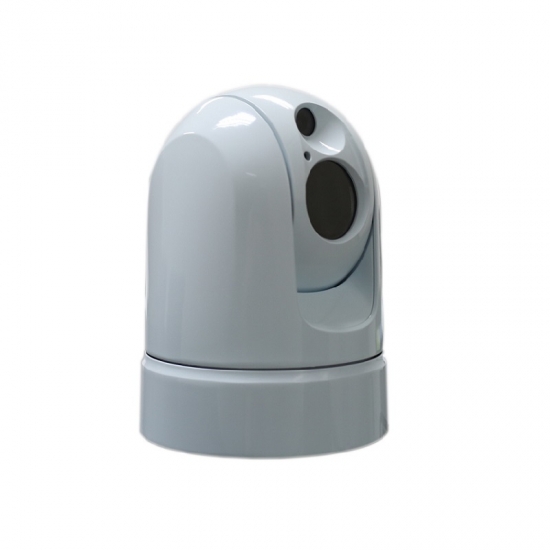

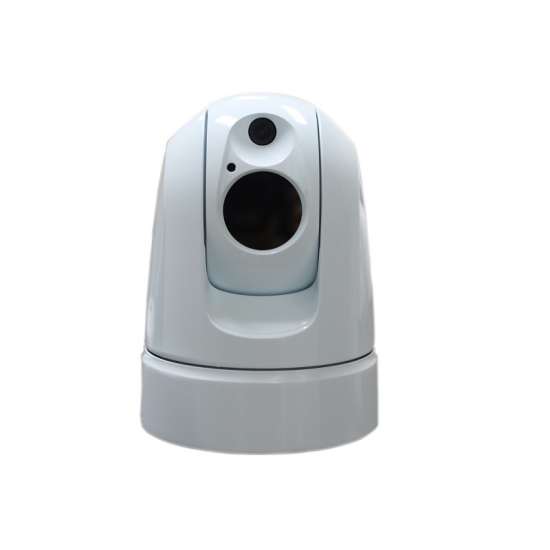

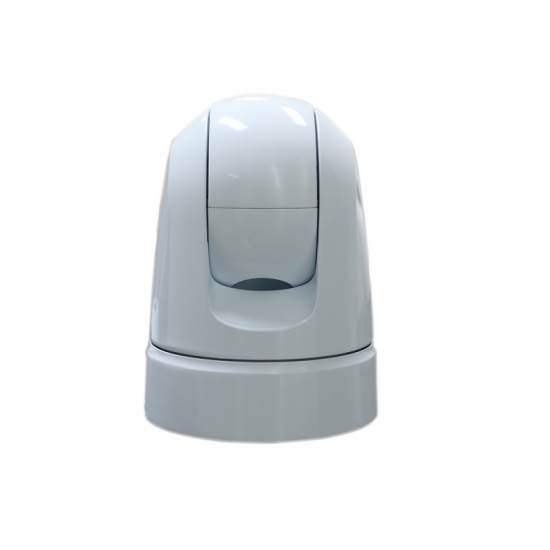

Dual lens resolution 384x288/640x480 thermal lens raymarine PTZ Camera
  • item no.:

    PATC-DZ619(G)
  • Description
  • Information

Feature

※ Uncooled Amorphns Silicon FPA, resolution: 384x288 / 640x488;
※ 1/.2.8" CMOS color visual camera, 2.14MP;
※ CVBS for color visual camera or thermal imaging camera;
※ Dual H.264 output for color visual camera and thermal imaging camera;
※ Wide Dynamic Range(WDR)
※ Day/Night(ICR)
※ Soft PTZ address, self-adaption of protocol and baud rate;
※ 10.8 - 28V wide range voltage input;
※ Waterproof index: IP66;
※ Auto power-off with low power supply.

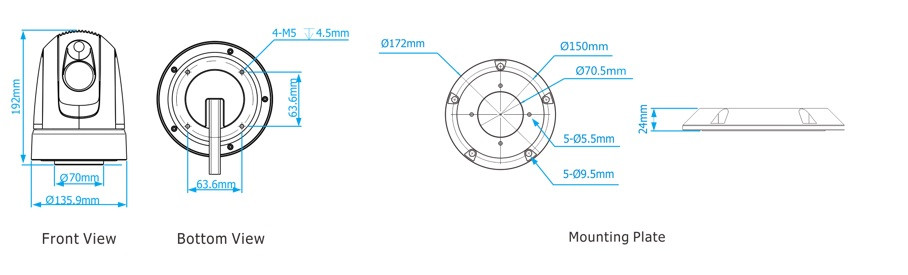

Dimension

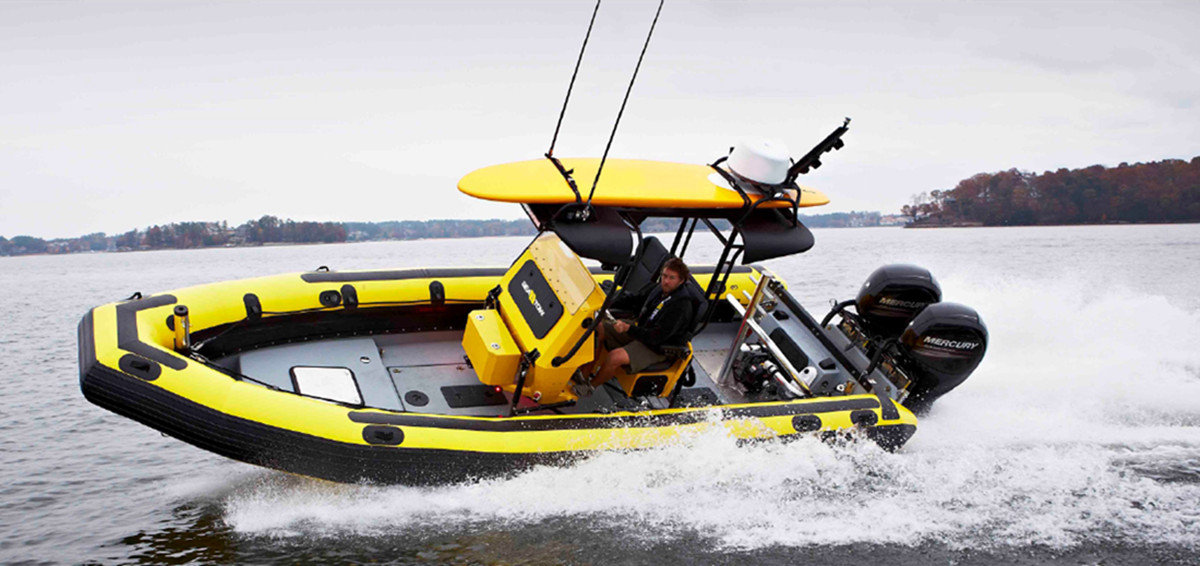

Application





Model No.

PATC-DZ313T

PATC-DZ319T

PATC-DZ613T

PATC-DZ619T

Thermal Imaging Camera

Sensor Type

Uncooled Amorphns Silicon FPA

Resolution

384 x 288

640 x 480

Sensor Size

17μm

NETK(300K)

≤60mk

FOV

13mm(28.2° x 21.3°)

19mm(19.5°x14.7°)

13mm(45.5°x34.8°)

19mm(32.5°x24.5°)

Digital Zoom

1X,2X,4X

Video Display

Black Hot / White Hot

White Hot/Black Hot Color Palettes

Detecting Range

Vehicle:1758m Man:380m

Vehicle:2570m Man:550m

Vehicle:1758m Man:380m

Vehicle:2570m Man:550m

Recognition Range

Vehicle:439m Man:95m

Vehicle:640m Man:130m

Vehicle:439m Man:95m

Vehicle:640m Man:130m

Digital Zoom

1X,2X,4X

Daylight Imaging Camera

Video Sensor

1/2.8" CMOS, 2.14MP

Effective Pixel

1920(H)x1080(V)

HD Video(network)

1080P/30,1080P/60,720P/60,720P/30,1080P/25,1080P/50,720P/50,720P/25

Optional SD Video

PAL/NTSC

Lens

Fixed

Image Flip

Support

Day / Night

Auto/Manual

DNR

1 -5 Steps / Off

PTZ

Pan

 360° Continuous, Control speed:0.1° - 60°/s, adjustable: Preset speed: 50°/s

Tilt

 -15° - 90°(Auto Flip), control speed:0.2° - 60°/s, adjustable: Preset speed:60°/s

Preset

 256

Network

Resolution

Max: 1920x1080@30fps

Video Compression

H.264

Protocols

HTTP, RSTP,TCP,UDP,ONVIF

Dual Steam

Support

General

Control Interface

RS-485

Adress

0 - 255

Network Interface

10M/100M

Video Output

HD-SDI

Comm Protocol

PELCO-P/PELCO-D(Self-Adaptive)

Baud Rate

2400bps, 4800bps,9600bps,19200bps(Self Adaptive)

Voltage

DC 10.8 -28V

Power

Min:12W; Max: 25W

Working Temperature

 -25°C - +55°C

IP Code

IP66

Dimensions

Φ135.9(mm) x 192(mm)

Weight

2.1kg
