PAC Thermal Imaging PTZ Camera

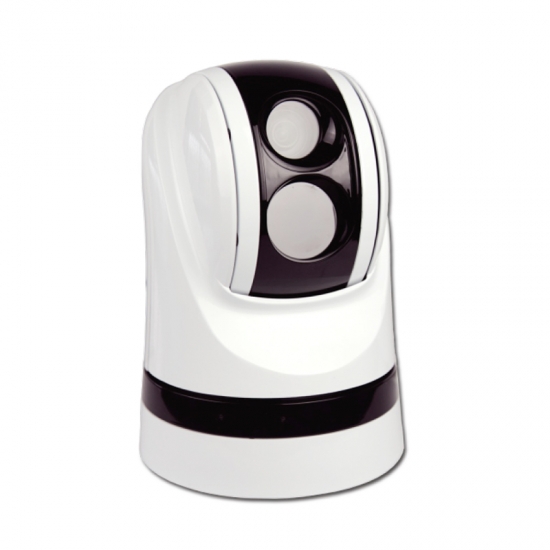

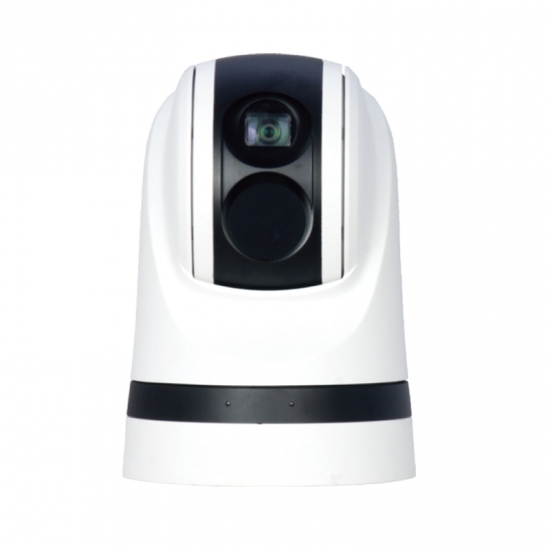

Dual Lens IP67 Thermal Maritime Rugged PTZ Cameras
  • item no.:

    PATC-G1928/G2028/G40
  • payment:

    2
  • product origin:

    28X
  • color:

    12X
  • shipping port:

    IP67
  • Description
  • Information
  • Downloads

Feathres



※ 384*288 high sensitive thermal imager, 19/25/40mm optional;

※ Integrated HAD 28X/36 visual zoom module, 550TVL;

※ Aluminum PTZ case with high strength, full weather proof;

※ IP index up to IP67, built-in surge and lighting strike protection device;

※ Built-in integrated defogging device, working temp range  -45°C- +55°C;

※ 3 video outputs: thermal video, visual video and switch video;

※ Precise PTZ system with higher holding torque, PTZ positioning precision up to  ±0.05°;

※ Protocol & baud rate self-adaptive, soft address supported;

※ Optional damping system for tough applications;

※ Digital image stabilization;

※ Image flip for stand / ceiling mount;

※ Video Freeze;

※ Wide Dynamic Range(WDR);

※ Day/Night(ICR);

※ 10.8 - 28V voltae output;

※ Auto power-off with low power supply.

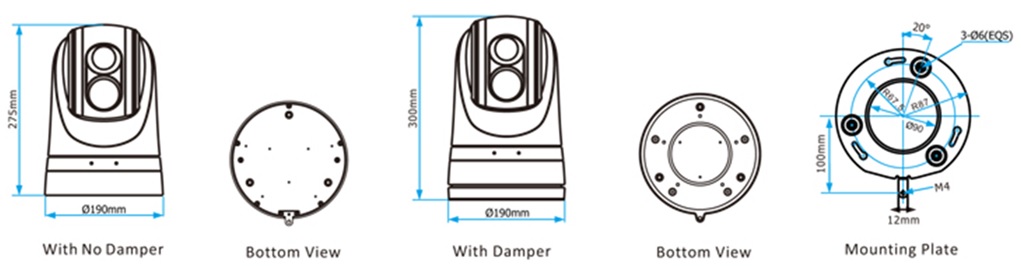

Demension

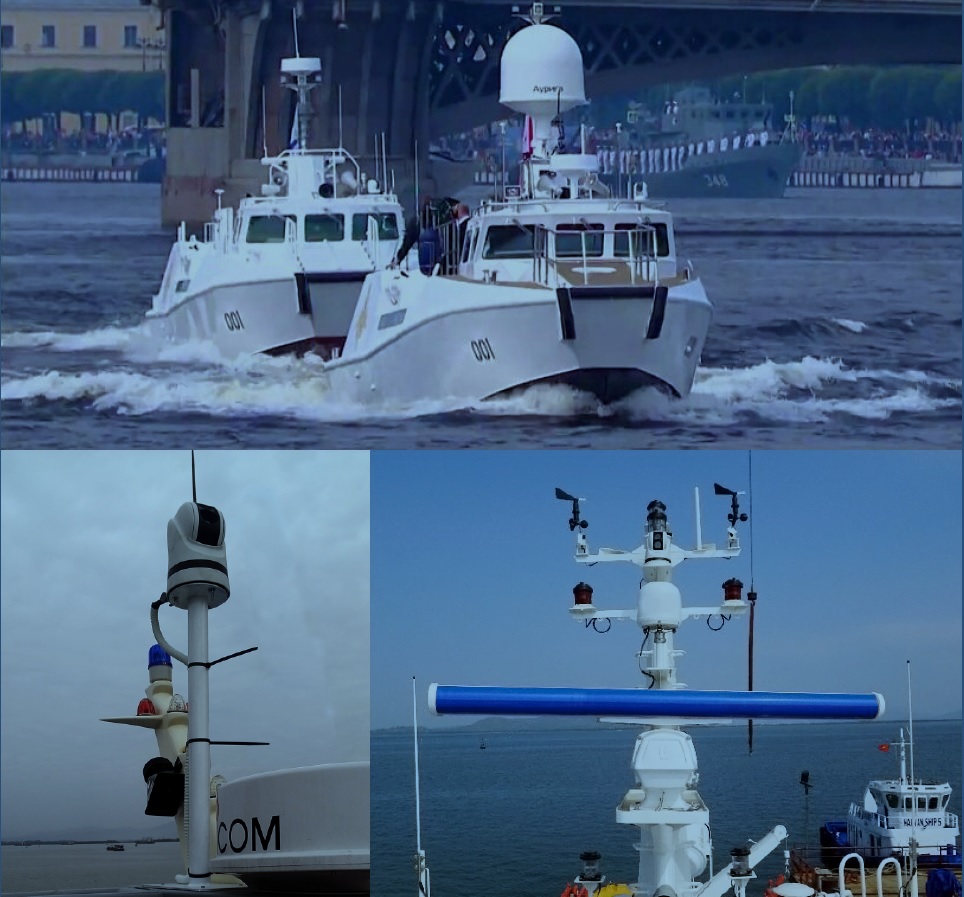

Application


Model No.

PATC-Z31936

PATC-Z34036

PATC-Z61936

PATC-Z64036

Thermal Imaging Camera

Sensor Type

Uncooled Amorphns Silicon FPA

Resolution

384 x 288

384 x 288

640 x 480

640 x480

Sensor Size

17μm

Focal

19mm

40mm

19mm

40mm

Focus

Fixed

Image Frame Rate

50HZ(PAL) / 60HZ(NTSC)

NETC(300K)

60mK

FOV

19.5° x 14.7°

9.3° x  7°

32° x 24.2°

15.5° x 11.6°

Detecting Range

Vehicle :2570m; Man: 550m

Vehicle: 5400m Man: 1170m

Vehicle: 2570m Man: 550m

Vehicle: 5400m Man: 1170m

Recognition Range

Vehicle: 640m  Man: 130m

Vehicle: 1350m Man: 290m

Vehicle: 640m Man: 130m

Vehicle: 1350m Man: 290m

Digital Zoom

1X, 2X, 4X

Daylight Imaging Camera

Video Sensor

1/4" SONY EX-View HAD CCD

Effective Pixel

PAL: 750(H) x 582(V); NTSC 768(H) x 494(V)

Resolution

550TVL

Video System

PAL/NTSC

Zoom

Optical: 36X; Digital:12X

Lens

f = 3.4mm - 122.4mm, F16.-F4.5

View Angle

57.8°(wide) - 1.8°(tele)

Min.Illumination

Color: 1.4Lux; Mono:0.01Lux

WB

Auto

Focus

Auto/Manual

IRIS

Auto/Manual

S/N Ratio

Not less than 50dB

WDR

Yes

BLC

On/Off

Image Stabilization

On/Off

DNR

1 - 5 Step/Off

Day/Night

Auto/Manual

PTZ

Pan Range

 360° Continuous

Pan Speed

 Control speed: 0.04° - 90°/s;  Preset speed: 120°/s

Tilt Range

 -15° - 90°(Auto Flip)

Tilt Speed

 Control:0.3° - 60°/s, adjustable; Preset Speed: 90°/s

Preset

 256

Preset Predicion

 ±0.2°

General

Video Output

1 Channel Thermal Imaging Video; 1 Channel Visual Video; 1 Channel Switch Video

Adress

0 - 255

Power Consumption

35W/50W(Heater On)

Working Temperature

 -25°C - +65°C

Voltage

 DC24V

IP Code

IP67

Anti-Vibration

Pan 9G, Tilt 15G

Wind Resistance

180 Km/h

Dimensions

Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm)

Weight

6kg W/O Damper; 7kg with Damper(Optional)
