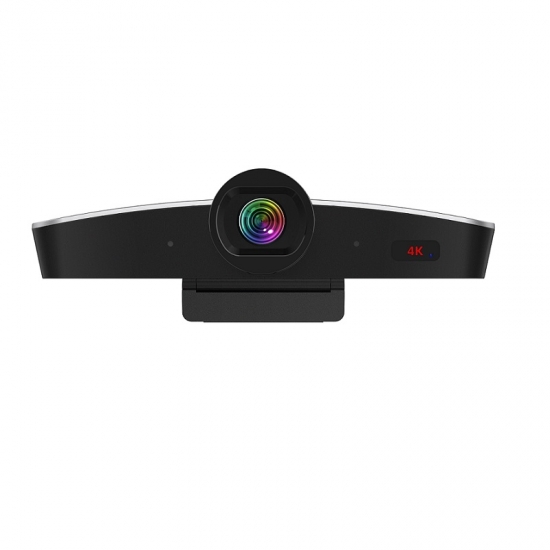

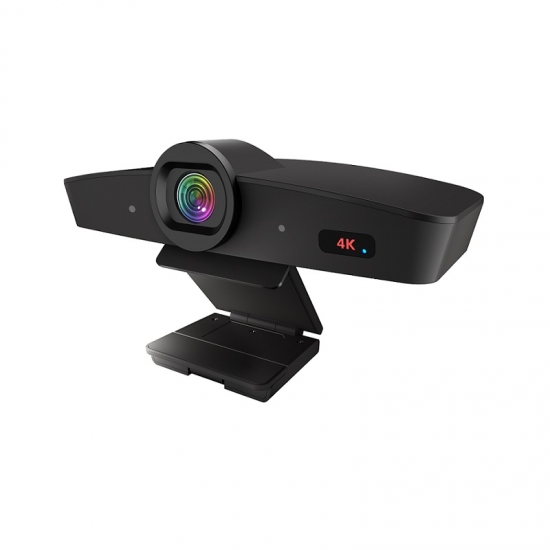

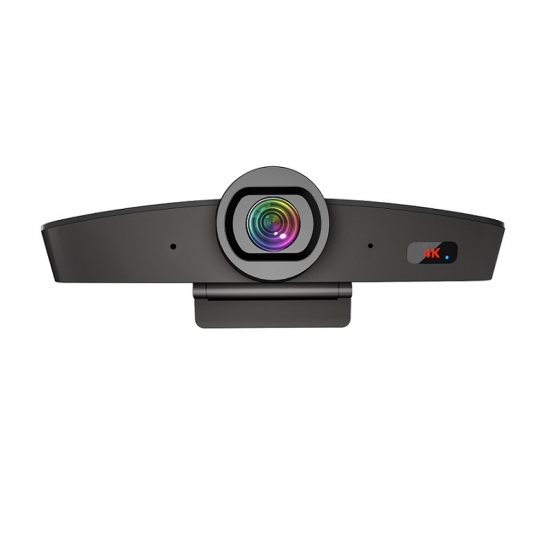

4K ePTZ UHD Video Camera with Auto-Framing

4K ePTZ UHD Video Camera with Auto-Framing

UHV-100M-U2-4K is a professional 4K Ultra HD EPTZ video conferencing camera, no PSU requested, power/control/video from USB2.0, ideal option for video conferencing in huddle room and small space. Also it with built-in dual microphones, max. pick up distance 5 meters. Also it support auto-framing to give best video experience.

item no.:
UHV-100M-U2-4K
payment:
T/T, Paypal, West Union
product origin:
China
color:
Black/Sliver
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Product Advantage

※ Adopt the most advanced image DSP and 1/2.8" 8.42MP sensor
※ Used high quality 8.42MP optical full glass lens, output ultra-high definition and crisp image
※ Support auto-fram function, to output best video size
※ Power via USB, a single USB2.0 cable for video output, camera control and power supply directly, friendly-use and flexible operation
※ Fast video switch: only 1 second
※ Unique and patent camera housing and mechanism design
※ With built-in dual microphone, pick up distance 5 meters

Product Features

※ 4x digital zoom
※ Support max 3840 x 2160 @ 30UHD resolution
※ 120 degree view angle without distortion
※ Electronic pan/tilt design, no mechanism problem
※ Support WDR, 3D noise reduction
※ Support image flip function, camera can be installed upside down

I/O Interface Dimension (unit: mm)

Model No.	UHV-100M-U2-4K
Sensor	1/2.8" inch high quality 8.42MP CMOS sensor
Video Format	YUY2/NV12: 1920x1080@30, 1280x720@30, 640x480@30, 320x240@30 MJPG/H.264/H.265: 3840x2160@30, 2560x1440@30, 1920x1080@30, 1280x720@30, 640x480@30,320x240@30
Zoom	4x lossless digital zoom
Horizontal view angle	120°
F.No.	2
Focal Distance	f=2.22mm
Control Interface	USB2.0(UVC)
Noise Reduction	3D
Minimum Lux	0.1 Lux
White Balance	Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Sodium Lamp / Fluorescent Lamp
Anti-Flicker	OFF/50Hz/60Hz
Gamma	Support
In-ceiling Mount	Support
Mirror	Support
Iris	Fixed
Electronic Shutter	Auto/Manual
BLC	Support
Image Flip	Support
USB power	Support
Input Voltage	5V 1A
Dimension(W x H x W)	199 x 93 x 65mm
