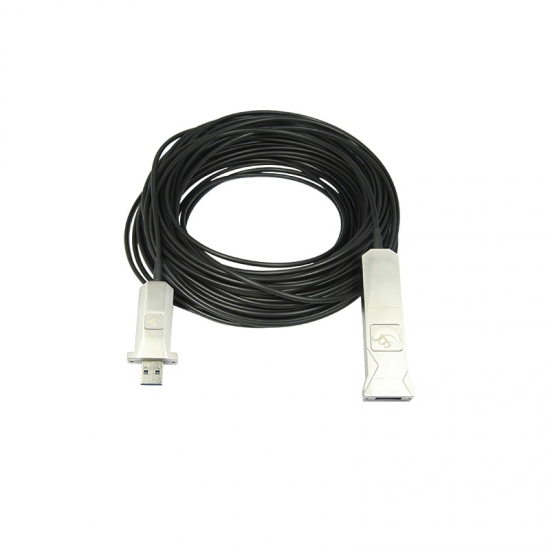

USB3-50 50M Hybird Cable for Google Hangouts Meet Hardware

WINSAFE USB3-50 is new generation of USB 3.0 hybrid cable. It's build-in unique SuperTT technology is capable of realizing mutual conversion between USB3.0 and USB2.0 protocols, so as to enable USB2.0 euipment to share the super speed bandwidth(5Gbps) of USB3.0. It is highly recommended to use with all series WINSAFE USB3.0 HD PTZ Camera for long distance application.
  • item no.:

    USB3-50
  • payment:

    T/T
  • product origin:

    China
  • lead time:

    5
  • Description
  • Information

※ Support USB3.0/USB2.0/1.1 devices

※ The maximum cable length can be up to 50m
※ The maximum transition speed can be up to 5Gbps
※ A substantial increase in USB2.0 device bandwidth with Build-in SuperTT technology
※ Without additional power supply
※ With locking screw holes
※ Hot-plugging
※ No driver& Anti-jamming

Model No.

USB3-50

Cable Length

50M

Interface

Hot side

USB3.0 Standard-A Plug(with locking screws), USB2.0 Micro-B Receptacle, Auxiiary powerSupply for device >2W power dissipation

Device Side

USB3.0 Standard-A Receptacle(with lockingthreads)

Data Rate

USB3.0 Super Speed, Up to 5Gbps, backward compatible with USB2.0/1.1

Power Dissipation

0.94W

Physical/Environmental

Dimension of the end

Hot side: 44mm/27mm/13mm, Device side:82mm/26mm/14.5mm

Weight of the end

TBD

Cable Diameter

3mm

Operating Temperature

0 - 55°C

Storage Temperature

 -20 - 80°C
