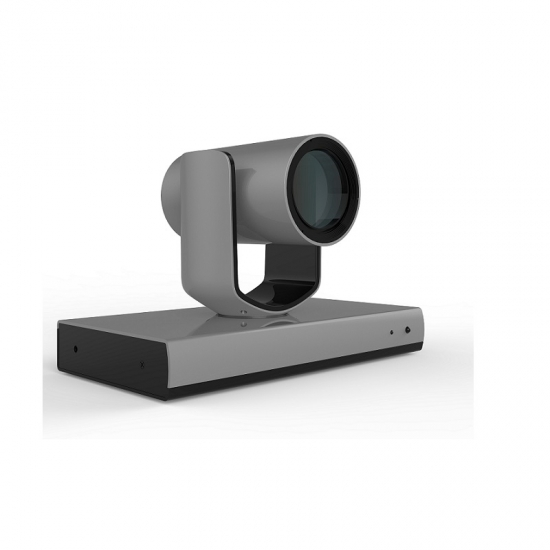

4K60fps Live Steaming 12X PTZ Video Camera for Church

AMC-G500 is a truly 4K60 12X PTZ camera, 1/2.8" CMOS, 8.46MP, truly 4K 12x lens, to output 4K60 sharp image.
It has smooth PTZ mechanical design, to make accurate pan,tilt, zoom movement,  simultaneously output 4K UHD and Full HD resolution, ideal for professional live steaming application.
  • item no.:

    AMC-G500(S/H)
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Sliver
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information

Feature


 - Wide 81° field of view
 - USB2.0 with UVC and UAC protocols, up to 4K30 video output, and support POE
 - Optional 3G-SDI or HD-BaseT video output
 - Support RS-232 in, RS-232 out control interface and VISCA protocol
 - 1 channel Line in
 - Fast, accurate and smooth tracking
 - High precision, smooth rotation, quiet PTZ

Model No.

AMC-G500(S/H)

Camera

Image Sensor

1/2.8" CMOS, 8.46MP

Lens

12X; f=3.4mm - 40.3mm; F1.8(Wide) - 3.6(Tele)

FOV

81° - 7.6°


Auto focus/auto exposure/auto white balance

SNR

2D & 3D DNR,55dB

Video Output Format

4KP60/P50/P30/P25, 1080P60/P50/P30P/25, 720P60/P50

Image Compression

H.264/H.265/MJPEG

BLC/WDR

Support

PTZ

Pan Angle

 -130°  - +130°;  0.2°  - 80°/s

Tilt Angle

  -30°  - +90°;  0.2°  - 60°/s

Menu

Support

Preset Number

64

Video/Audio Interface

SDI(Optional)

1x3G-SDI, support 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50

HDMI

1xHDMI2.0; Video resolution: 4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50

Audio Input

1 x line in, 3.5mm

HD-BaseT(Optional)

1xHDB - BaseT, support 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50

USB

USB Interface

1xUSB2.0

Video Format

MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 260P30/25

Interface

Network Interface

1x10M/100M/1000M, RJ45 POE(Optional)

Video Output Format

Max. 4KP60

Image Compression

H.264/H.265/MJPEG

Audio Compression

AAC

Network Protocol

RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP

Dual Stream

Main/Sub

General

Control Protocol

VISCA

Addresses

1-6

Power

DC12V

Power Consumption

Below 18W

Working Environment

Temperature: 0°C - +40°C; Relative Humidity: 10%RH - 90%RH

Storage Environment

Temperature: -20°C - +60°C;Relative Humidity: 10%RH - 95%RH

Dimension

245mm x 145mm x 165mm

Weight

1.8kg
