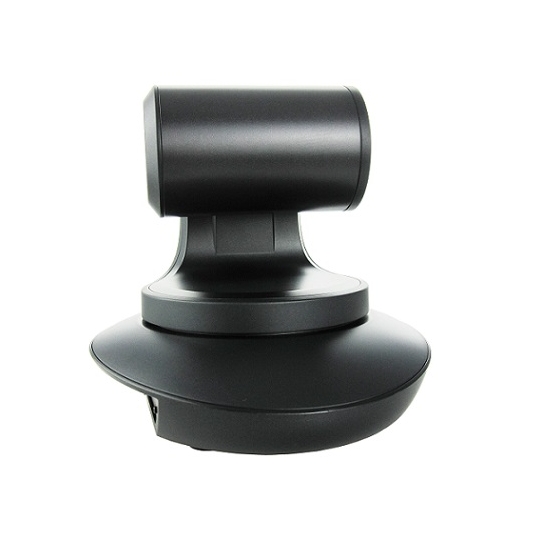

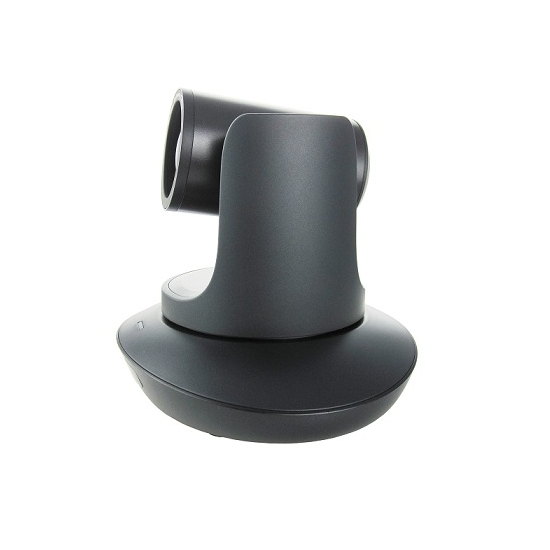

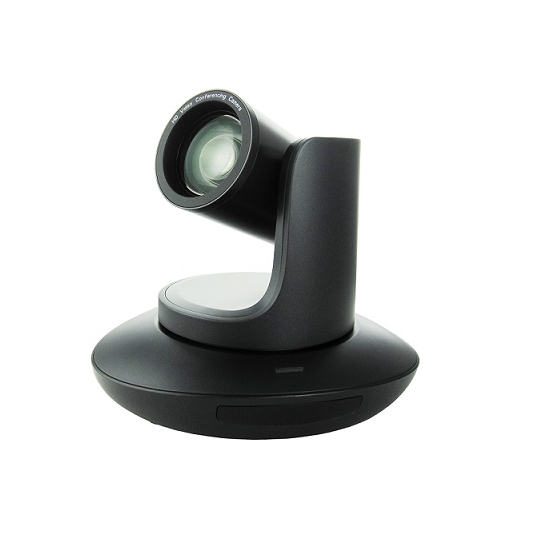

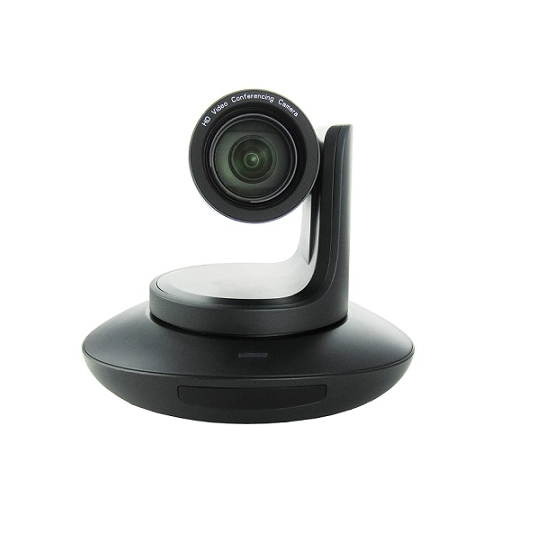

4K HD 12X 3840X2160 Wide Agnle HD PTZ Video Conference Camera

UHV-400H is a professional grade UHD video camera, video streaming from IP, HDMI,3G-SDI&USB3.0 simultaneously, very ideal for broadcast level AV solution, video conferencing and video surveillance application.
  • item no.:

    UHV-400H
  • payment:

    1/2.5
  • product origin:

    12X
  • color:

    2X
  • shipping port:

    IP65
  • lead time:

    220
  • Description
  • Information

Advantages


※ Adopts most advanced DSP,1/2.5 inch 12MP sensor
※ 4K wide angle optical lens: 12x optical zoom, 72.5° field of view
※ 4K video over IP, and support H.264, H.265 encoding
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ IP,HDMI,SDI,USB outputs, fit for different application
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Pelco-P, Pelco-D control protocol
※ Supplied with function IR remote controller, can set IP address via OSD menu



Features


※ IP, HDMI,SDI and USB outputs simultaneously
※ 12X optical zoom + 2X digital zoom
※ 3840x2160p30 Ultra HD video resolution
※ Automatic access to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ WDR, 3D Noise Reduction feature
※ 128 presets
※ Support RS232/RS485 serial control
※ Image flip function, support upside-down installation
※ Sony Visca and Pelco D/P protocol
※ Support daisy chain feature


3840X2160P30 ULTRA HD VIDEO RESOLUTION



12X OPTICAL ZOOM + 2X DIGITAL ZOOM, 72.5 DEGREE FIELD OF VIEW



IP, 3G-SDI, HDMI AND USB 3.0 VIDEO OUTPUT SIMULTANEOUSLY



POE SUPPORTED

STANDARD SONY VISCA, ONVIF, PELCO-D/P CONTROL PROTOCOL


SUPPORT IMAGE FLIP FUNCTION, CAMERA CAN BE INSTALLED UP OR UPSIDE DOWN




Specification


Model No.

UHV-400-H

Sensor

1/2.5" 12Megapixel high quality CMOS Sensor

Video System

HDMI

IP

SDI

USB3.0

3840x2160p30/25
1080p60/50/30/25
720p60/50/30/25
108i60/50

Main Steam:
3840x2160p30
1920x1080p60
Sub Steam:
1280x720,704x576
640x480,352x288

1080p60/50/30/25
720p60/50/30/25
1080i60/50

1080p60/50/30/25
720p60/50/30/25
USB 3.0 & 2.0:
1027x576p30
960x540p30
640x360p30
352x288p30

Zoom

12x optical zoom + 2x digital zoom

FOV

6.3°(near)  - 72.5°(far)

F.no.

Wide: 1.84      Tele: 2.81

Min.Focus Distance

Wide: 0.3m     Tele:1m

Preset

10 via remote controller; 128 via serial port; preset precision: 0.1°

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 35°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Control Port

RS232/RS485/RJ45

Video Port

HDMI/RJ45/SDI/USB3.0/USB2.0

Network Speed

1000M

Noise Reduction

2D & 3D

SNR

Above 50dB

Focal Length

f=3.92(near) - 47.32mm(far)

Minimum Lux

0.01Lux

White Balance

Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

PanTilt Flip

Supported

Iris

Auto/Manual

Electric Shutter

Auto/Manual

BLC

Auto/Manual

Focus

Auto/Manual

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps - 30720Kbps

Frames

50HZ: 1fps - 50fps;  60HZ: 1fps - 60fps (3840 x 2160 max.30fps)

IP Protocol

TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP

POE

Supported

Input Voltage

DC12V, 2A

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)
