4K UHD 12X NDI PTZ Camera

WINSAFE UHV-400H-4K(NDI) is a professional grade 4K Ultra HD video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, it has 12x optical zoom,with 72.5° wide angle. NDI enables live streaming simpler, easier and affordable. No mess, an Ethernet cable enables video, audio, control, tally, and power. UHV-400H(NDI) is a top-rated option used in professional live streaming solution, working with TriCaster, Wirecast, Vmix, OBS, Xplit etc, applied for Corporate, Class Room, Studio, and Professional AV environments.Broadcast Quality with Affordable Cost
  • item no.:

    UHV-400H-4K(NDI)
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black White Grey Sliver
  • lead time:

    3
  • Description
  • Information

Feature


※ Adopting the advanced ISP, 1/2.5 inch 8MP sensor, to provide 3840x2160p30 Ultra HD and crisp video with full details.
※ 12x optical zoom+2x digital zoom, 72.5 degree field of view.
※ IP Video Streaming, includes both H.264, H.265 video encoding;
※ NDI|HX, 3G-SDI, HDMI, USB output video simultaneously, 4K video over NDI|HX and HDMl.
※ WDR, 3D Noise Reduction feature;
※ Power over Ethernet: one single CAT5/6 to get video, control, tally and power;
※ Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly.
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving,
※ Smooth PTZ mechanical design, accurate pan tilt motor control;
※ 128 presets;
※ Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.
※ Daisy chain supported.
※ Image flip function, support upside-down installation;
※ Supplied with functional IR remote controller, can set IP address via OSD menu;
※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system.

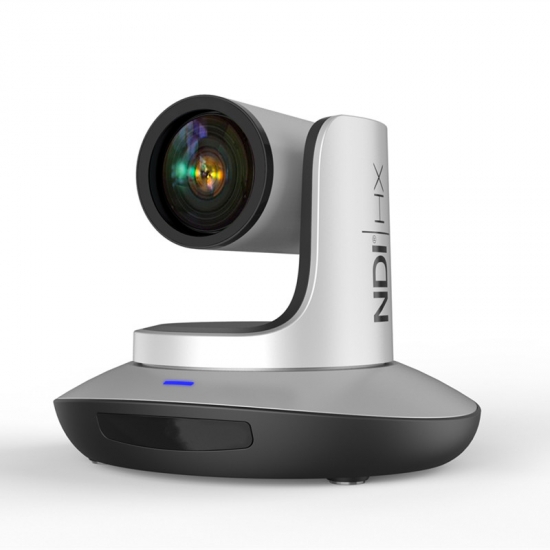

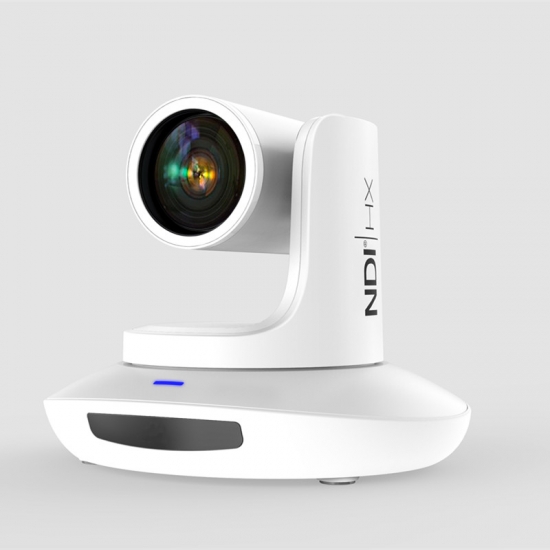

※ Optional enclosure color: silver, grey, black, white.


Output Interface


Model No.

UHV-400H-4K(NDI)

Camera

Sensor

1/2.5" 8MegapixelCMOS Sensor

Video System

HDMI

NDI

3G-SDI

USB

3840x2160p30/25
1920x10800p60/59.94/50/30/29.97/25/24
1920x1080i60/59.94/50
1280x720p60/59.94/50/30/29.97/25

Main Steam:
3840x2160p30
1920x1080p30
Sub Steam:
1280x720@30
1024x576@30
640x360@30

1920x1080p60/59.94/50/30/29.94/25/24
1920x1080i60/59.94/50
1280x720p60/59.94/50/29.97/30/25

USB 3.0:
1920x1080p60/50/30/25
1280x720p60/50/30/25
1024x576p30
USB 2.0:
1024x576p30,960x540p30
640x360p30,352x288p30

Zoom

12x optical zoom + 2x digital zoom

View Angle

6.3° (wide) - 72.5° (tele)

Focal Length

f=3.92(Near) - 47.32mm(Far)

SNR

Above 50dB

Minimum Lux

0.01Lux

Focus

Auto/Manual

Min.Focus Distance

Wide: 0.3m     Tele:1m

Iris

Auto/Manual

Iris No.

Wide: 1.84  Tele: 2.81

White Balance

Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor

Electric Shutter

Auto/Manual

Backlight Compensation

Atuo/Manual

Noise Reduction

2D & 3D

D/N Mode

Supported

Gamma

Supported

Mirror Image

Supported

Image Flip

Supported

Video Freeze

Optional

Mechanical

Preset

10 via remote controller; 128 via serial port; preset precision:0.1°

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

  - 120° /s

Tilt Rotation Speed

  -  80° /s

Control Port

NDI|HX RS232 / RS485 /USB3.0

Video Port

NDI|HX/3G-SDI/HDMI/USB3.0

Power

DC12V,2A

POE

Optional

Encoding

Video Encoding

H.264/H.265

Bit Rate Control

Variable BitRate, Constant Bit Rate

Video Bit Rate

1024Kbps - 20480Kbps

Frames

50HZ: 1fps - 30fps;  60HZ: 1fps - 30fps (3840 x 2160 max.30fps)

IP Protocol

TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)

Note: When HDMI outputs 4K, NDI|HX outputs 4K, and 3G-SDI&USB3.0 have no image. If you need 3G-SDI and HDMI output image, the HDMI needs to output 1080p or lower than 1080p resolution.
