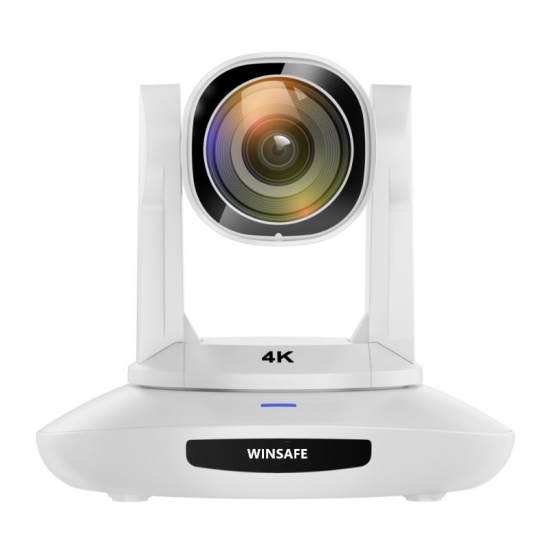

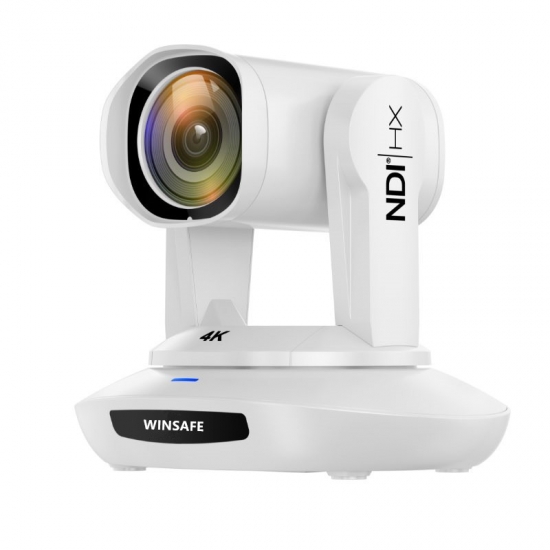

4K 60fps 20xX PTZ Video Camera for Church Living Steaming

UHV-420H-NDI-A is a truly 4K60 20X PTZ camera, integrated with latest NDI ® SDK, equipped with American most advanced image processing solution, 1/1.8", 9MP UHD CMOS sensor, truly 4K 20x lens, to output 4K60 sharp image.
It has smooth PTZ mechanical design, to make accurate pan,tilt, zoom movement, NDI®|HX, HDMI, SDI and USB3.0 output 4K UHD and Full HD resolution, ideal for professional live steaming application.

item no.:
UHV-450H(NDI)-A
payment:
T/T, Paypal, West Union
product origin:
China
color:
Black/White
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Feature

Using the most advanced DSP, 1/1.8", 9MP UHD CMOS sensor, and high-quality 20x optical zoom, 60 degree wide-angle optical lens to ensure smooth and crystal clear UHD images
Fast video format switching: only 3 seconds
20X optical magnification plus 7X electronic magnification
Fast and accurate focus performance
Firmware upgraded via WebUI.
Support serial daisy chain, up to 7 cameras can be controlled by one serial port under VISCA protocol
Support RS232/RS485/RS422, UVC control interface
Support the standard Sony VISCA over IP control interface, you can achieve remote control of the camera through IP
Support POE power supply, a network cable can solve the power supply, video, control and all other functions, while providing high-performance video encoding, video detail effect almost no loss
Up to 128 preset bits can be set
Compatible with the standard UVC1.1 protocol, compatible with most of the video conferencing software, providing customer development interface
Provide multi-functional infrared remote control, support remote control one key to switch the video standard
Multi-language menu supported

4K&HD Resolution

UHV-420H(NDI)-A features a state-of-the art image processor,1/1.8", 9MP UHD CMOS sensor, and outputs an ultra-high-definition video resolution of 3840*2160p59.94/60 to display clear, sharp and lifelike images to users, even in low-light working environments

Embed the latest NDI®5 SDK

Newtek's NDI® creates a plug-and-play environment for various products and platforms in live steaming, making it possible to produce abundant and diverse live content

20X Optical Zoom/7X electronic

It shoots with a 4K 20x optical zoom lens with a 60 degree field of view, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.

Smooth and Quiet PTZ Movement

Perform real-time pan, tilt and zoom camera movements with motor-driven PTZ camera control and configurable preset positions. Focus, white balance, exposure, iris can be adjusted automatically or manually. 128 presets supported; Exposure parameter and white balance parameter can be saved in presets(in manual mode).

SRT Supported

SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes steaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks

RTMP

RTMP stands for Real-Time messaging protocol. This protocol facilitates the transmission of audio, video and data in real-time. It is a key component of live steaming technology because of its ability to maintain low-latency connections RTMP/RTMPS to live-steaming to YouTube Live, Facebook live and other platform directly.

3G-SDI/HDMI/USB2.0 Available

In addtion to NDI®|HX, 3G-SDI, HDMI and USB2.0 output image simultaneously as well
3G-SDI and HDMI are for conventional video production workflow, USB output can be used as a high-end webcam

Camera can work with:

Model No.	UHV-420H(NDI)-AB
Sensor	1/1.8", 9MP UHD CMOS sensor
Zoom	20x optical zoom
Lens	f = 6.25mm - 112.5mm, F1.58 - F3.96
Horizontal View Angle	61°(Wide) - 3.5°(Tele)
Vertical viewing angle	34.1° - 1.9°
Diagonal viewing angle	60.7° - 3.5°
Minimum Working Distance	1.0m
S/N Ratio	≥50dB
Video Format	HDMI2.0： 38402160P60/59.94/50/30/29.97/25 19201080P60/59.94/50/30/29.97/25/24/23.98 ; 19201080I60/59.94/50 ; 1280720P60/59.94/50/30/29.97/25
	NDI®\|HX： Main Stream: 38402160P15~60; 19201080P15~60; 1280720P15~60; 1024576P15~60 Sub Stream :640*360P15~30
	3G-SDI： 19201080P60/59.94/50/30/29.97/25/24/23.98; 19201080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
	USB Type-C： NV12：19201080P5; 1280720P15; 1024576P25; 800448P30 YUYV：19201080P5; 1280720P15; 1024576P25; 800448P30 MJPG：38402160P30; 19201080P60; 1280720P60; 1024576P60;800448P60 H264/H265: 38402160P30;19201080P60;1280720P60;1024576P60; 800448P60
Image Parameters
Noise Reduction	2D & 3D
Minimum Lux	20x:0.5Lux(50 ire max agc,1/30,f1.8)
White Balance	Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
Exposure	Auto/manual/shutter priority/iris priority/brightness priority
Anti-Flicker	OFF, 50Hz, 60Hz
Image Flip	Support
Mirroring	Support
Focus	Auto/Manual
Iris	Auto/Manual
Electronic-shutter	Auto/Manual
Gamma	Support
Backlight Compensation	Support
IP Steaming
Video Encoding	H.264/H.265
Bitrate Control	Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range	1024Kbps - 61440Kbps
Network Port Speed	1000M
Protocol	NDI®\|HX, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D, HTML5, Webrtc, RTP Multicast
Pan/Tile Movement
Preset	Remote controller:10; Serial port: 128; Accuracy: 0.1°
Pan Rotation Angle	-170° - +170°
Tilt Rotation Angle	-30° - +90°
Pan Rotation Speed	20x :0.1° - 120°/s
Tilt Rotation Speed	20x :0.1° - 60°/s
I/O Interface
Control Port	RS232(RS485), NDI@\|HX
Video Port	NDI®\|HX, HDMI2.0, 3G-SDI, USB Type-C
Audio Port	Dual 3.5mm linear inputs
Tally	Support
Tilt Rotation Speed	Support
Daisy Chain	Support
General
Input Voltage	DC12V, POE+(IEEE802.3at)
Operating Temperature	-10℃~ 50℃
Operating Humidity	≤80%
Color	Black/White
Dimension（L×W×H）	20x: 220mm×190mm×173mm
Net Weight	20x: 1.7kg(3.8LBS)
