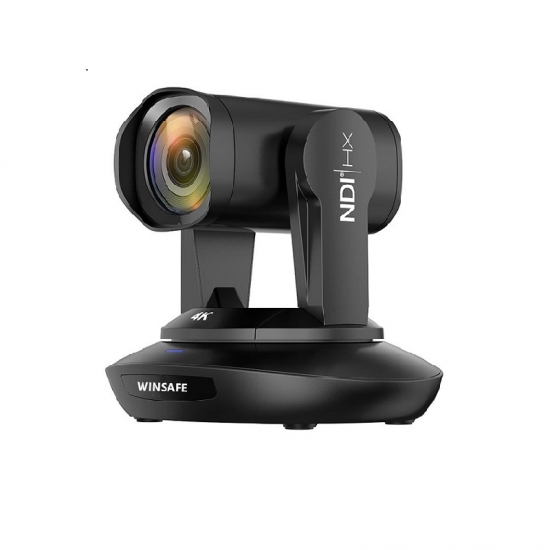

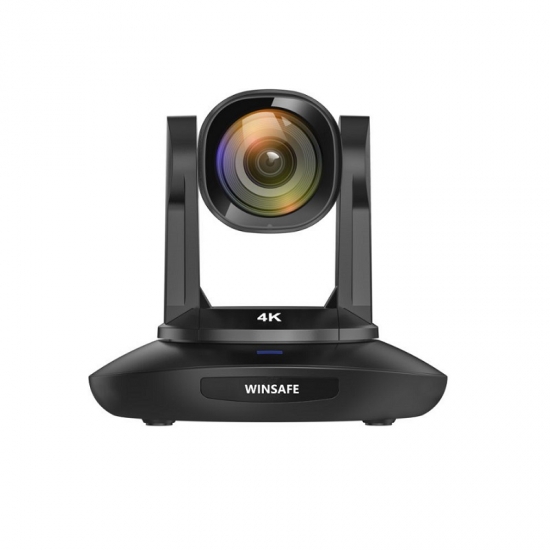

4K 60fps 30X Live Streaming PTZ Video Camera

UHV-450H-NDI-A is a truly 4K60 30X PTZ camera, integrated with latest NDI ® SDK, equipped with American most advanced image processing solution, Sony 1/1.8 inch 12MP sensor, truly 4K 30x lens, to output 4K60 sharp image.
It has smooth PTZ mechanical design, to make accurate pan,tilt, zoom movement, NDI®|HX, HDMI, SDI and USB3.0 output 4K UHD and Full HD resolution, ideal for professional live steaming application.
  • item no.:

    UHV-450H(NDI)-A
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black/White
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

Feature


  • Using the most advanced DSP, 1/1.8-inch 8.42MP sensor, and high-quality 30x optical zoom, 60 degree wide-angle optical lens to ensure smooth and crystal clear UHD images
  • Fast video format switching: only 3 seconds
  • 30X optical magnification plus 7X electronic magnification
  • Fast and accurate focus performance
  • Firmware upgraded via WebUI.
  • Support serial daisy chain, up to 7 cameras can be controlled by one serial port under VISCA protocol
  • Support RS232/RS485/RS422, UVC control interface
  • Support the standard Sony VISCA over IP control interface, you can achieve remote control of the camera through IP
  • Support POE power supply, a network cable can solve the power supply, video, control and all other functions, while providing high-performance video encoding, video detail effect almost no loss
  • Up to 128 preset bits can be set
  • Compatible with the standard UVC1.1 protocol, compatible with most of the video conferencing software, providing customer development interface
  • Provide multi-functional infrared remote control, support remote control one key to switch the video standard
  • Multi-language menu supported

4K&HD Resolution


UHV-450H(NDI)-A features a state-of-the art image processor, Sony 1/1.8" inch 12-megapixel sensor, and outputs an ultra-high-definition video resolution of 3840*2160p59.94/60 to display clear, sharp and lifelike images to users, even in low-light working environments


Embed the latest NDI®5 SDK


Newtek's NDI® creates a plug-and-play environment for various products and platforms in live steaming, making it possible to produce abundant and diverse live content


30X Optical Zoom/7X electronic


It shoots with a 4K 30x optical zoom lens with a 60 degree field of view, and a proprietary focusing algorithm enable fast and precise focus performance when zooming or moving, to capture every detail of the scene.


Smooth and Quiet PTZ Movement


Perform real-time pan, tilt and zoom camera movements with motor-driven PTZ camera control and configurable preset positions. Focus, white balance, exposure, iris can be adjusted automatically or manually. 128 presets supported; Exposure parameter and white balance parameter can be saved in presets(in manual mode).


SRT Supported


SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes steaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks


RTMP


RTMP stands for Real-Time messaging protocol. This protocol facilitates the transmission of audio, video and data in real-time. It is a key component of live steaming technology because of its ability to maintain low-latency connections RTMP/RTMPS to live-steaming to YouTube Live, Facebook live and other platform directly.


3G-SDI/HDMI/USB2.0 Available


In addtion to NDI®|HX, 3G-SDI, HDMI and USB2.0 output image simultaneously as well
3G-SDI and HDMI are for conventional video production workflow, USB output can be used as a high-end webcam


Camera can work with:






Model No.

UHV-450H(NDI)-A

Video Format

HDMI2.0

3840*2160P60/50/30/25/29.97/24/23.98;  1920*1080P60/50/30/25/59.94/29.97/24/23.98
1920*1080I60/50/59.94;  1280*720P60/50/30/25/59.94/29.97

IP(NDI)

Main Stream: 3840*2160@3-60; 1920*1080@3-60; 1280*720@3-60;  1024*576@3-60
Sub Steam: 1280*720@3-60;  1024*576@3-60;  640*360@3-60

3G-SDI

1920*1080P60/50/30/20/59.94/29.97/24/23.98;  1920*1080I@60/50/59.94;  1280*720P@60/50/30/25/59.94/29.97

USB2.0(Bulk)

NV12: 1024*576p24; 800*480P30
YUYV: 1024*576p18;  800*480P27
MJPG: 3840*2160P30/25;  1920*1080P60/50/30/25; 1280*720P60/50; 1024*276P60/50; 800*480P60/50
H.264/H.265: 3840*2160P60/50/30/25;  1920*1080P60/50/30/25;  1280*720P60/50; 1024*576P50; 800*400P60/50/30

Video Interface

HDMI2.0, 3G-SDI, IP(NDI), USB2.0

Audio Interface

Dual 3.5mm linear inputs

Sensor

Sony 1/1.8" high quality, 12MP UHD  CMOS sensor

Lens

6.91 - 214.64mm, F1.35-4.6, Viewing angle: 59°(Wide) - 1.98°(Tele)

Pan/Tilt Rotation Range

Pan:±170° Tilt-30°~+90°Up-side down supported

Pan/Tilt Rotation Speed

Pan0.1°-120°/s Tilt0.1°-80°/s

Preset

0 via remote controller128 via serialaccuracy0.1°

Control Port

RS232, RS422, RS485, NDI ®|HXRJ45 (VISCA over IP)USB2.0(UVC1.1)

Network Port Speed

1000M

Encode Standard

H.264/H.265

Bitrate Control

Variable Bitrate, Constant Bitrate

Video Bitrate

1024Kbps~16384Kbps

Supported Protocol

TCP/IPNDI|HX, HTTPRTSPDHCPRTMPONVIFVISCA over IP(TCP&UDP)HTML5VISCAPELCO P/D

POE+

Supported

Daisy Chain

Supported

Min. Lux

0.1Lux

White Balance

Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor

Exposure

Auto/manual/shutter priority/iris priority/brightness priority

Focue/Iris/Shutter

Auto Manual

Gamma/WDR/Backlight compensation

Supported

2D/3D noise reduction

Supported

Anti-Flicker

OFF/50Hz/60Hz

Pan/Tilt Flipping

Supported

Power

DC12V/POE+(IEEE802.3at)

Color

Black/White
