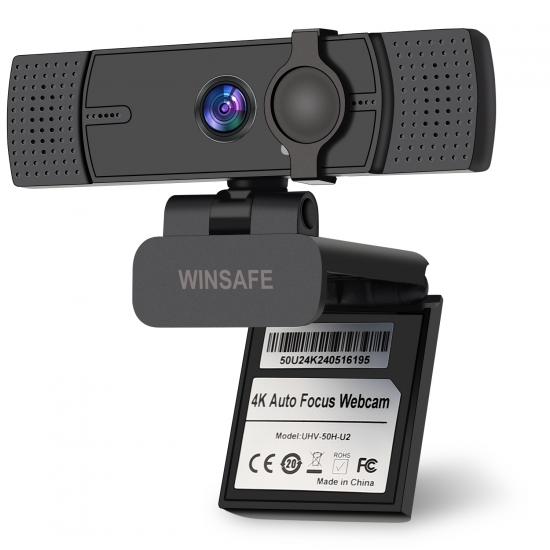

4K USB Webcam

Camera

Part Number

 UHV-50H-U2

Horizontal View Angle

 1/2.55" 12.2MP UHD CMOS sensor

Vorizontal View Angle

 69.8°

Pickup range

 54.5°

Diagonal View Angle

 1080P supports 2X digital zoom, 720P supports 3x digital zoom

EPTZ

 Support

Output Interface

 USB2.0(Type-A)

Video Format
USB2.0(Type-C)

 YUY2: 640x480@30/20; 640x360@30/20

 MJPG: 4000x3000P15/10; 3840x2160P30/15/10; 2592x2194P30/15/10;
 2048x1536P30/20/15; 1920x1080P60/30/15/10; 1600x1200P30/15/10
 1280x720P30/15/10; 800x600P30/15/10; 640x480P30/15/10;320x240P30/15/10

Focus

AI Auto Focus

Image Parameters

White Balance/Exposure/Focus

 Auto/Manual

Flicker

 50Hz/60Hz

2D Noise Reduction

 Support

WDR/Backlight contrast

 Support

Backlight Compensation

 Support

Mirror, Flip

 Support

Microphone Pointing

 Omnidirectional microphone

Sensitivity

 -26±2dB RL=2.2KΩ Vs=2.0V

Gamma/Brightness/Sharpness

 Support

Saturation/Contrast

 Support

General

Input Voltage

 USB5V

Poroduct Certification

 RoHS, FCC, CE

Working Environment

 Temperature：-10°C - 50°; Humidity：≤80%

Storage Temperature

 -20°C - 60°C

Webcam Size

 106mm x 57.2mm x 55.5mm

Package Size

 144x103.5x50mm

Net Weight

150g

Accessories

1.5m USB2.0(A-C) cable, Manual, Warranty  card
