Choosing the wrong thermal ptz camera can expose your property to gaps in security. Many buyers miss critical details like thermal imaging resolution, ignore the build quality, or select features that do not fit their needs. You must understand technical factors such as sensitivity and environmental resistance.

Paying attention to these essentials helps you avoid costly errors and ensures your thermal security camera delivers reliable performance.

Key Takeaways

• Always check the resolution and pixel count of thermal PTZ cameras. Higher resolution leads to clearer images and better detection.

• Consider the sensitivity (NETD) and temperature range of the camera. Lower NETD values improve detection of small temperature differences.

• Evaluate the build quality and IP ratings. A robust camera with a high IP rating ensures durability and reliable performance in harsh conditions.

• Define your application needs before choosing a camera. Different uses, like security or wildlife monitoring, require specific features.

• Prioritize ongoing maintenance and manufacturer support. Regular upkeep and good customer service enhance the longevity and effectiveness of your thermal camera.

Overlooking Thermal PTZ Camera Specs

Ignoring Resolution and Pixel Count

You must pay close attention to resolution and pixel count when selecting a thermal ptz camera. Higher resolution means more pixels, which leads to greater detail in thermal imaging. This detail is essential for accurate detection and analysis. For example, increasing resolution from 384×288 to 640×512 more than doubles the pixel count. The area each pixel covers decreases, so you gain sharper images and improved accuracy.

High resolution allows you to measure more temperature points, which enhances detailed analysis in security and industrial applications.

Missing Sensitivity (NETD) and Temperature Range

Sensitivity, measured by NETD (Noise Equivalent Temperature Difference), determines how well your thermal security camera detects small temperature differences. A lower NETD value means higher sensitivity, so you can spot minute temperature variations. This feature improves image clarity and detection, especially in challenging weather.

• NETD measures the smallest temperature difference your camera can detect.

• Lower NETD values boost sensitivity and detection capabilities.

• Enhanced sensitivity leads to clearer thermal imaging and better accuracy.

Temperature range also matters. You need a camera that operates reliably in your environment. Outdoor models often work from -40°F to 140°F, while some can handle up to 158°F for desert use.

Neglecting Refresh Rate

Refresh rate affects how smoothly your thermal imaging updates. If you choose a camera with a low refresh rate, you may miss fast-moving objects or changes. Most security applications require at least 30 Hz for smooth monitoring. Emergency responders report that 60 Hz is useful in high-mobility situations, but 30 Hz works well for most needs.

• A 9 Hz refresh rate is acceptable for measuring static temperatures.

• 30 Hz is the minimum for general surveillance.

• 60 Hz provides extra clarity in dynamic environments.

Always match camera specs and features to your detection needs for reliable performance.

Ignoring Build Quality and IP Ratings

Underestimating Robust Construction

You should never overlook the build quality of a thermal imaging PTZ camera. Strong construction protects your investment and ensures reliable operation in tough environments. Manufacturers use materials like aluminum alloy for the housing, which resists corrosion and shields internal components. High-efficiency optical glass improves image clarity and withstands impacts. Built-in heating and heat dissipation features help the camera maintain performance during extreme temperatures. Precision engineering in pan and tilt mechanisms keeps images stable and reduces vibrations.

• Sturdy base and smooth-moving parts improve image stability.

• High-quality materials in pan and tilt mechanisms reduce vibrations.

• Precision engineering ensures smooth movement, preventing image distortion.

A robust camera stands up to dust, moisture, and impacts, making it a smart choice for long-term security.

Skipping Ingress Protection (IP) Ratings

You must pay attention to IP ratings when choosing a thermal PTZ camera. The IP rating shows how well the camera resists dust and water. Higher ratings mean better protection and longer lifespan in harsh conditions.

For outdoor security cameras, an IP rating of IP66 or above is considered ideal. To meet the demands of extended water submersion, a higher IP rating like IP67 or IP68 would be more suitable.

The IP weatherproof rating directly affects how long your camera lasts in exposed locations. IP66 cameras resist high-pressure water jets and dust. IP67 models survive temporary water immersion. IP68 cameras handle prolonged rain and harsh environments, making them suitable for coastal or marine installations.

• IP66: Fully dust-tight and resistant to high-pressure water jets.

• IP67: Survives temporary submersion up to 1m for 30 minutes.

• IP68: Suitable for prolonged rain and harsh conditions.

Choosing a camera with the right IP rating ensures your thermal device performs reliably and protects your security system from environmental threats.

Mismatching Camera to Security Needs

Not Defining Application (Security, Industrial, Wildlife)

You need to define your application before choosing a thermal ptz camera. Security, industrial, and wildlife monitoring each demand unique capabilities. If you select a camera without considering your environment, you risk poor performance and wasted investment. Security applications often require long-range detection and high-resolution thermal imaging for accurate threat identification. Industrial sites benefit from cameras that withstand extreme temperatures and weather. Wildlife monitoring needs specialized coatings to protect lenses and high-definition images in low-visibility conditions.

Tip: Write down your main purpose—such as perimeter security, equipment monitoring, or wildlife observation—before you start comparing models.

Overlooking Feature Alignment

You must align the features of your thermal security camera with your specific needs. Not every camera suits every situation. For border monitoring, you need long-range detection—up to 40 km for vehicles and 20 km for humans. High-resolution thermal sensors provide clear imaging in all weather, which is crucial for accuracy. Weather-proof designs ensure reliability in harsh environments.

• Integrated systems enhance overall security capabilities.

• Advanced analytics improve surveillance efficiency.

• Automated analysis boosts accuracy and reduces manual monitoring.

If you overlook feature alignment, you may end up with a camera that cannot deliver the performance you expect. Always match the features to your application for the best results.

Overlooking Image Quality in Thermal Imaging

Disregarding Lens and Optics

You should never underestimate the impact of lens quality on a thermal imaging camera. The lens and optics determine how much detail you see and how far you can detect objects. High-resolution lenses give you clearer images and help you identify targets more accurately. Smaller pixel sizes, such as 12μm compared to 17μm, increase resolution and let you recognize distant objects with greater accuracy. Longer focal lengths allow you to zoom in on faraway subjects, but they also narrow your field of view.

• Higher resolution lenses improve image clarity and target identification.

• Smaller pixel sizes enhance resolution and help you spot distant objects.

• Longer focal lengths let you zoom in, which is useful for long-range monitoring.

Tip: Choose a lens that matches your monitoring needs. If you need to observe large areas, select a wider field of view. For distant targets, prioritize longer focal lengths and higher resolution.

Ignoring Image Processing and Frame Rate

Image processing plays a major role in the performance of your thermal imaging camera. Advanced image processing techniques, such as local contrast enhancement, help you distinguish objects from their backgrounds, even when temperature differences are small. Video analytics can provide automatic alerts and improve your situational awareness, making your security system more efficient.

• Local contrast enhancement improves object detection in challenging conditions.

• Video analytics reduce false alarms and trigger security responses automatically.

• High-quality analytics help you respond quickly and accurately to threats.

Frame rate is another critical factor. For smooth video output, you need a frame rate of at least 60 frames per second. This high frame rate helps you track fast-moving subjects and reduces motion blur. It also ensures you capture clear evidence during rapid movements or in difficult lighting.

For the best results in security and monitoring, always check the image processing features and make sure your camera supports a fast frame rate. This combination will boost your accuracy and give you reliable thermal imaging.

Forgetting Environmental Factors

Not Considering Weather Resistance

You must evaluate how weather conditions impact the performance of your thermal PTZ camera. Rain, fog, and snow can reduce image quality and make it harder to distinguish objects. Rain causes less scattering than fog, but it still lowers background contrast. Wet snow acts like rain, while dry snow behaves more like fog, increasing scattering and making detection difficult. If you ignore these factors, your security solutions may fail during critical moments.

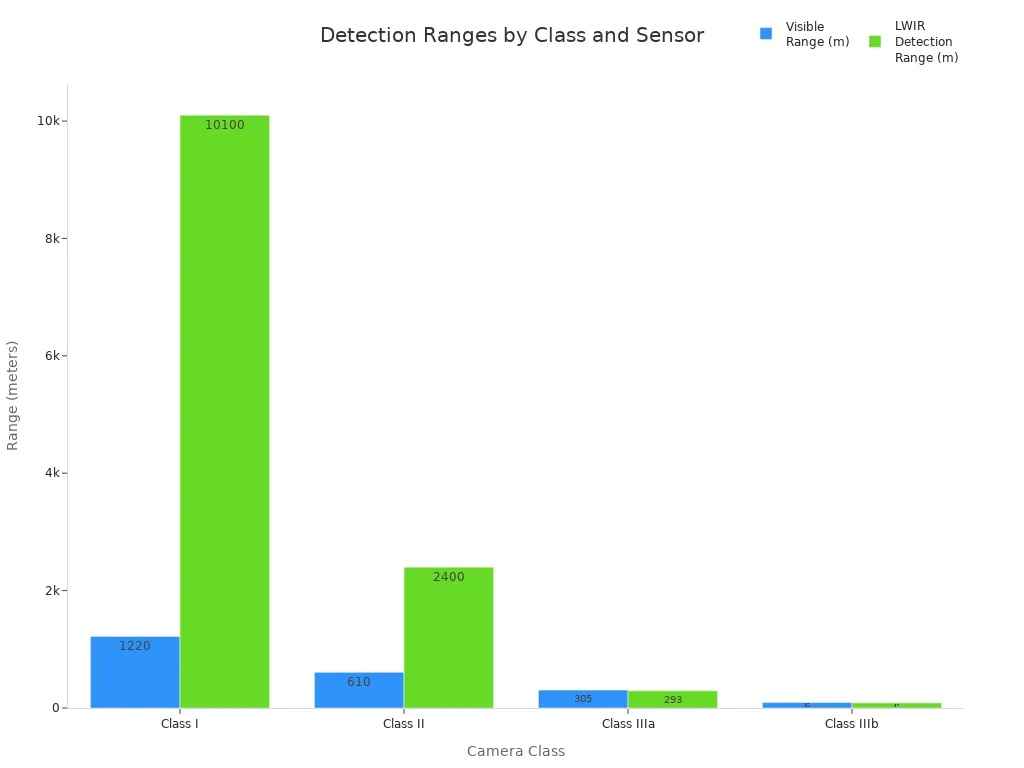

The detection range changes depending on weather conditions. The table below shows how visible and long-wave infrared (LWIR) detection ranges vary across different camera classes:

Weather resistance is essential for reliable thermal imaging and monitoring. You need to choose a camera that maintains accuracy in rain, fog, and snow.

Ignoring Temperature Extremes

You should also consider the temperature limits your camera can withstand. Outdoor environments often expose devices to extreme heat or cold. Some advanced models, like the HiTemp ETX Series, operate at temperatures up to 150°C. This high tolerance comes from thermoelectric materials that improve cooling capacity by 10% compared to traditional coolers. Most outdoor cameras function reliably up to 90°C, which covers typical security applications.

If you overlook temperature extremes, you risk performance degradation and increased maintenance needs. Always check the specifications to ensure your camera suits your monitoring environment. Selecting the right model protects your investment and guarantees consistent security.

Underestimating Maintenance and Support

Overlooking Installation and Upkeep

You might focus on features and image quality, but you should not ignore the importance of installation and regular maintenance. A thermal PTZ camera needs proper setup to deliver reliable protection. If you skip routine upkeep, you risk losing accuracy and reducing the lifespan of your security solutions.

Regular maintenance keeps your thermal imaging system working at its best. You should check for physical damage, clean the lens, and test camera functions often. Inspecting cables and weatherproof seals helps prevent failures during harsh weather or temperature changes. The table below shows a simple schedule for keeping your camera in top condition:

Tip: Following a regular maintenance plan helps you avoid unexpected breakdowns and ensures your security system provides reliable protection year-round.

Ignoring Manufacturer Support

You should always consider the level of support offered by the manufacturer. Good support makes a big difference when you need help with installation, troubleshooting, or firmware updates. Some brands offer detailed guides, responsive customer service, and easy access to replacement parts. Others may leave you searching for answers when problems arise.

Reliable manufacturer support ensures your thermal camera stays up-to-date and performs well in all conditions. It also helps you handle issues related to temperature extremes or technical malfunctions. When you choose a camera, look for a company with a strong reputation for customer care and technical assistance. This choice gives you peace of mind and keeps your security running smoothly.

Note: Manufacturer support is a key part of long-term protection and accuracy in thermal imaging systems.

Focusing Only on Price

Sacrificing Key Features

You might feel tempted to select a rugged thermal PTZ camera based only on price. This decision often leads to sacrificing essential features that impact your security and protection. Lower-priced models usually limit resolution, which reduces detail recognition and measurement accuracy. You may also encounter temperature range restrictions, with budget cameras often capped between 150°C and 400°C. These limits can prevent you from using the camera for demanding industrial applications.

Advanced features, such as trend analysis tools and robust measurement functions, are frequently missing in cheaper models. You may notice basic thermal imaging capabilities but lack the ability to perform detailed analysis. Build quality also suffers. Cameras with lower IP ratings and less durable construction struggle in harsh environments, which affects the reliability of your security solutions.

• Resolution constraints reduce detail and accuracy.

• Temperature range restrictions limit industrial use.

• Lack of advanced features hinders analysis.

• Lower build quality impacts durability and protection.

Tip: Always compare features before making a purchase. A camera with strong build quality and advanced features will provide better long-term security.

Ignoring Total Cost of Ownership

Focusing only on the initial price can cause you to overlook the total cost of ownership. You may face issues with certification, which can lead to legal and safety compliance problems. Incorrect installation increases the risk of equipment failure and safety hazards. Budget models often make it difficult to source replacement parts or firmware updates, which complicates maintenance and reduces reliability.

You might regret choosing uncertified alternatives if your camera fails inspections. The table below shows common risks associated with low-cost thermal cameras:

Note: Consider the long-term costs, including maintenance, support, and upgrades. Investing in a quality thermal imaging camera ensures reliable security solutions and consistent protection.

You can avoid costly mistakes by carefully matching your thermal ptz camera to your surveillance needs. Always consider factors like mounting height, field of view, and temperature range to ensure your thermal security camera performs well in darkness. Use a checklist to compare features such as resolution, lens, and integration.

Consulting experts helps you make informed decisions and ensures your thermal imaging system delivers reliable security, even in total darkness.

• Review installation plans to prevent blind spots.

• Prioritize operational use cases over just camera specs.

• Invest in ongoing surveillance excellence for long-term value.

FAQ

What makes a thermal ptz camera ideal for 24/7 surveillance?

You get reliable protection with a thermal ptz camera. It provides visibility in darkness and complete darkness. The camera uses advanced features for improved detection. You can trust it for 24/7 surveillance in high-security environments and for monitoring critical infrastructure.

Why is calibration important for thermal cameras in high-security environments?

Calibration ensures accurate readings. You need proper calibration for reliable performance. High-security environments demand solutions that deliver accurate readings in complete darkness. Regular calibration helps you maintain the effectiveness of your security system.

How does proper calibration improve monitoring in complete darkness?

Proper calibration gives you accurate readings. You achieve improved detection and reliable performance. In complete darkness, calibration allows your thermal camera to deliver solutions that support custom security solution needs and high-security environments.

What features should you look for to ensure reliable protection in complete darkness?

You should check for advanced features like automatic calibration, high sensitivity, and robust construction. These features help you get accurate readings and solutions for high-security environments. They also support monitoring and security in complete darkness.

Can thermal cameras provide solutions for monitoring critical infrastructure in complete darkness?

Yes, thermal cameras offer solutions for monitoring critical infrastructure. They deliver accurate readings and reliable protection in complete darkness. You can use them in high-security environments where visibility in darkness is essential for security and monitoring.
