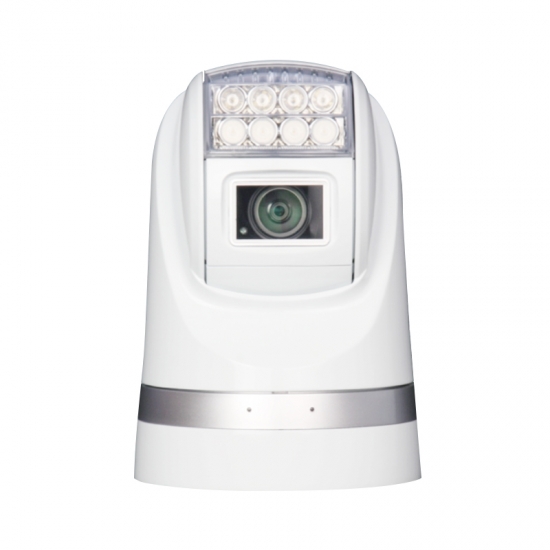

Portable All Condition IP67 White Light PTZ Cameras

  • Model No : PAC-S2801-WL/PAC-S36
  • Sensor : 1
  • Resolution : 550
  • Optical Zoom : 18X/28X/36X
  • Digital Zoom : 12X
  • IP Index : IP67
  • Size : 0
  • Weight : 4.9KG

  • contact_bg
Product Details

Features



※ Aluminum PTZ case with high strength, full weather proof;
※ IP index up to IP67;
※ Optional damping system,for tough applications;
※ Powerful aux white light system,range up to 120 meters;
※ Hidden seamless window wiper with adjustable speed, build-in defogger;
※ New design of driver system, PTZ positioning pretection up to +/-0.05º;
※ Soft camera address;
※ Baud rate, protocol self-adaptive;
※ Digital image stabilization(DIS);
※ Image flip for stand/ceiling mount;
※ Video freeze;
※ Ex-VIEW HAD CCD,550TVL,28X/36X;
※ Wide Dynamic Range(WDR);
※ Day/night(ICR);
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.



Specification



Model No.

PAC-S3601P(N)-WL

PAC-S2801P(N)-WL

Camera

Image Sensor

1/4" SONY EX-View HAD CCD

Resolution

PAL:752(H) x 582(V); NTSC: 768(H) x 494(V)

Resolution

550TVL

Optical Zoom

36X

28X

Digital Zoom

12X

Min Iilumination

0.01lux(Lights off) / 0Lux(Lights On)

0.0015lux(Lights off) / 0Lux(Lights On)

White Balance

Auto

Focus

Auto/Manual

Exposure

Auto/Manual

S/N Ratio

Not less than 50DB

BLC

ON/OFF

WDR(150X)

Yes

No

Digital Image Stabilization

On/Off

Digital Noise Reduction

1~5 Steps

Day/Night

Yes

Lens

f=3.4mm~122.4mm, F1.6 to F4.5

f=3.5mm~ 98mm, F1.35 to F3.7

View Angle

57.8º (wide) to 1.7º (tele)

55.8º (wide) to 2.1º (tele)

PTZ

Pan Range

360º  continuous

Pan Speed

0.04 º - 120º /s adjustable

Tilt Range

-15°~90° with image flip

Tilt Speed

0.3° ~90°/s adjustable

Preset Speed

Pan: 120°/s; Tilt:90°/s

Preset

256

Preset Precision

±0.05°

White Light

Color Temperature

6500K

Lamp Power

30W(Including Driver)

Brightness

2100LM

Rnage

120M

Switch

Manual

General

Comm.Interface

RS-485

Protocol

PELCO-P/PELCO-D

Baud Rate

2400bps, 4800bps, 9600bps, 19200bps (self-adaptive)

Address

0-255

Voltage

DC 10.8~ 28V

Power

20W(Defogger and IR Off)

40W(Defogger On and IR Off)

70W(Defogger and IR On)

Working Temp.

-45°C~+65°C

IP Index

IP67, TVS,Anti-Surge

Dimensions

Standard:Φ190(mm)×300(mm)

With Damper:Φ190(mm)×275(mm) w/o

Weight

Standard:4.9kg
Optional:5.65kg(with damper, optional)
