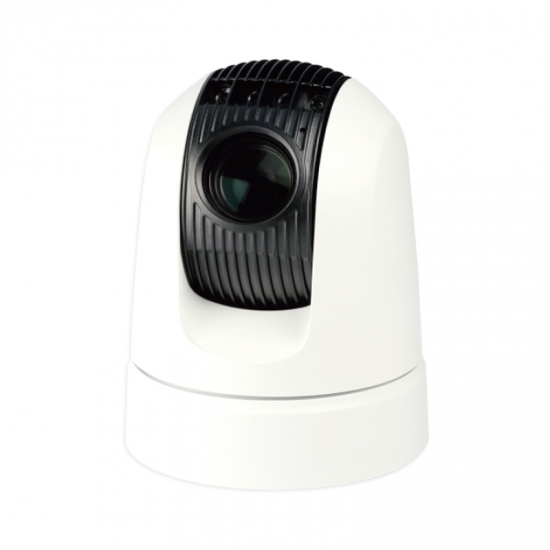

AC3 HD IP Vehicle IR PTZ Cameras

  • Model No : AC3-S2008N-IR
  • Sensor :
  • Resolution : 0
  • Optical Zoom :
  • Digital Zoom :
  • IP Index :
  • Size : 0
  • Weight :

  • contact_bg
Product Details

Features



※ 1/2.8” CMOS, 2.13MP, 30X/20X optical zoom;
※ Network video maximum support 1080P30;
※ Support CVBS standard clear video output;
※ Support H.265, H.264 video compression, support dual stream;
※ Support multi level video quality configuration;
※ ONVIF & RTSP Compliant;
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Digital image stabilization;
※ Soft PTZ address, protocol and baud rate self-adpative;
※ Waterproof index: IP66;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.



Technical Specification



Model No.

AC3-S2008N-IR

AC3-S3002N

Camera

Image Sensor

1/2.8" Progressive Scan CMOS,2.13MP

Active Pixel

1920(H) x 1080(V)

Signal Sytem(NET)

HD:1080p30 / 1080p25  / 720p60 / 720p50 / 720p30 / 720p25

Signal System(SD)

PAL / NTSC

Min.Illumination

Color: 0.0013Lux; B/W:0.0008Lux

White Balance

Auto

Focus

Auto / Manual

Exposure

Auto / Manual

S/N Ratio

Note less than 50 Db

BLC

On / Off

WDR

On / Off

Digital Noise Reduction

1 - 5Steps/OFF

On/Off

Digital Image Stabilization

No

Day/Night

Auto / Manual

Lens

Optical Zoom

20X

30X

Digital Zoom

12X

Lens

f=4.7mm - 94mm

f=4.3mm - 129mm

IRIS

F1.6 - F3.5

F1.6 - F4.7

View Angle

 59.5° (wide) to 3.3° (tele)

 63.7° (wide) to 2.3° (tele)

PTZ

Pan Range

 360° Continuous

Pan Speed

  0.1° - 60°/s, adjustable, Preset Speed: 60°/s

Tilt Range

  - 15 °  - 90° with auto flip

Tilt Speed

  0.2° - 60°/s, adjustable, Preset Speed:60°/s

Preset Number

256

Preset Precision

 ±0.2°

IR Light

IR Wave Length

850nm

Range

60m

Switch

Auto / Manual

Network

Image Resolution

1920 x 1080@30fps

Image Compression

H.264, H.265

Audio Compression

AAC

Protocol

HTTP, RTSP, TCP, UDP, ONVIF

No.of User Access

Up to 10

Dual Stream

Support

Interface

Audio Interface

1 Line in, 1 Line out

Video Output(SD)

CVBS1.0V(p-p)/75Ω  PAL or NTSC(optional)

Ethernet Interface

RJ45, 10/100M

Comm. Interface

RS-485

General

OSD Lanuage

English

Address

0 - 255

Comm.Protocol

PELCO-P / PLECO-D(self-adaptive)

Protocol

2400bps, 4800bps,9600pbs,19200bps(self-adaptive)

Voltage

DC 10.8 - 28V

Power

Min: 9W; Max: 20W

Working Temperature

 -35°C - +65°C

IP Code

IP66

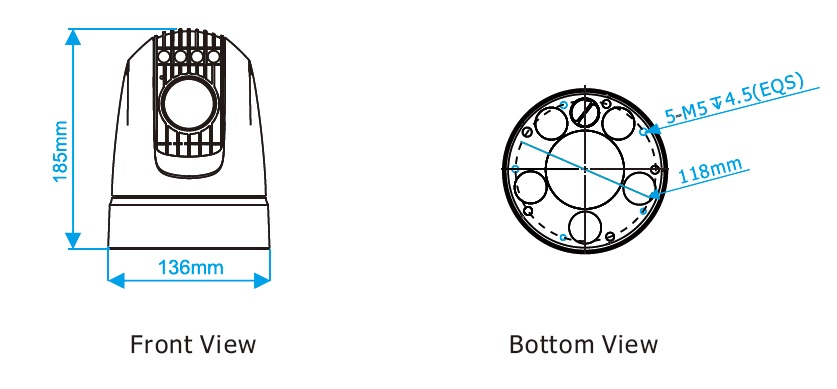

Dimensions

Standard(Without Damper): Φ136(mm) x 185(mm)

Weight

Standard(Without Damper): 2.1(±0.2)kg
