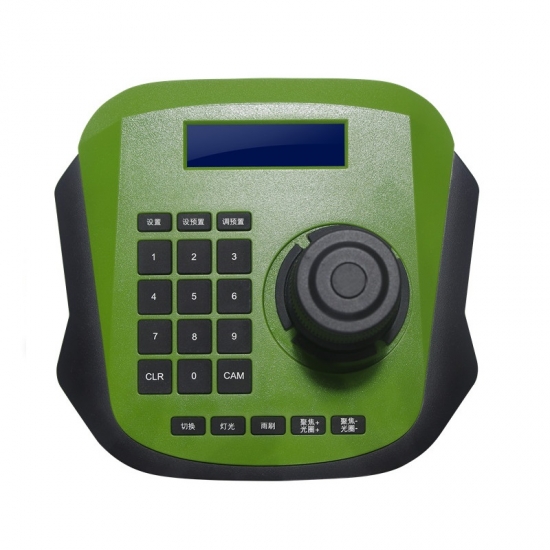

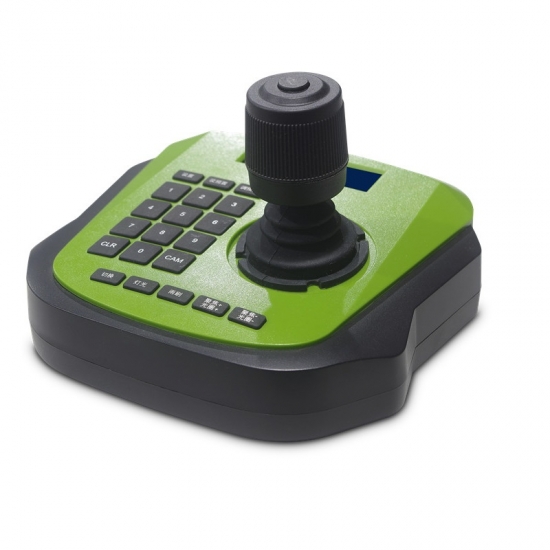

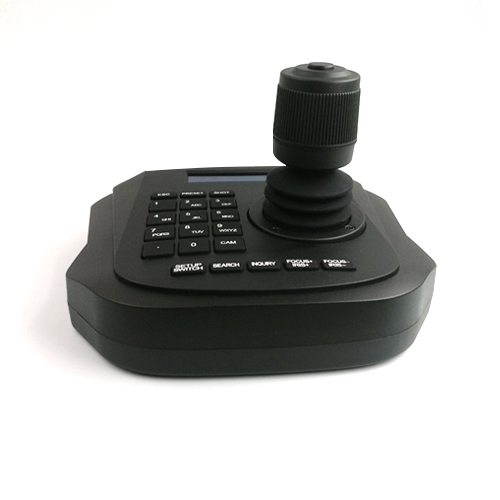

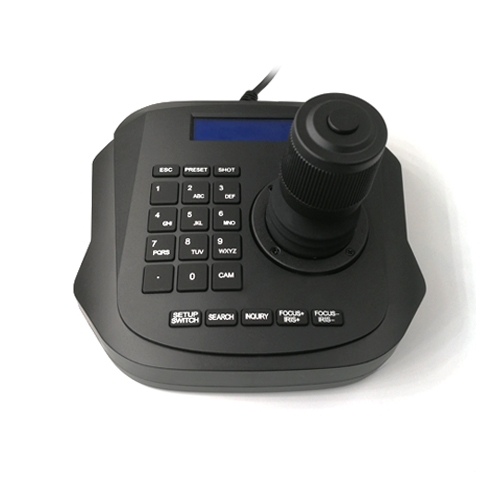

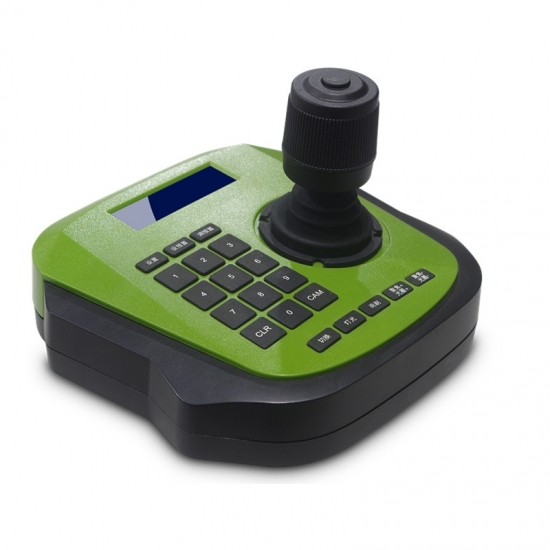

Network Vehicle 3D Joystic Mini PTZ Speed Dome Camera Controller/CKB-15IP

  • Model No : CKB-15IP
  • Sensor :
  • Resolution : 0
  • Optical Zoom :
  • Digital Zoom :
  • IP Index :
  • Size : 0
  • Weight :

  • contact_bg
Product Details



IP Keyboard Controller can be applied to installed in Multi-IP PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., realize the unified control of the Onvif protocol in the LAN


Product Introduction


It can effectively prevent from scratching. Using industrial-grade LCD, it can  display excellent  quality . Covered with a layer of rigid organic glass makes the characters more clearly. It supports Onvif protocol, high compatibility, extension IP keyboard controller adopt aluminum wire, high-end atmosphere, unique surface




※ Support Network control model, It has unique IP address.

※ Support ONVIF protocol, realize the control to PTZ.

※ Support Auto-search the ONVIF devices in LAN


※ Support Offline search & add devices.

※ Support Max 253pcs front-end equipments in one LAN.

※ Support many famous brand IP PTZ Coding, such as Hikvision, Dahua, TVT, Hanbang, XM, Jovision...etc

※ Support control IP PTZ to call and set Presets, zoom, focus, Iris, Tour etc.

※ Japan-Original 4D Joystick

※ LED displayer can display IP PTZ’s status info


Technical Specification


Model No.


Main Chip

Grain GM8126


1pc 3.81pin, TA,TB


1pc DB9 male pin


1pc Ethernet, IEEE 802.11 b/g/n


Onvif 2.4

Power Supply

DC12V ± 10%

Working Temperature

0°C - 55°C  / 15°F - 131°F

Working Humidity

20% - 80%(frostless)

Storage Temperature

 -20°C - 70°C / 14°F - 140°F

Storage Humidity

Below 90%RH(frostless)


158 x 150 x 107(mm)




CE, RoHs

Warranty Time

One Year
