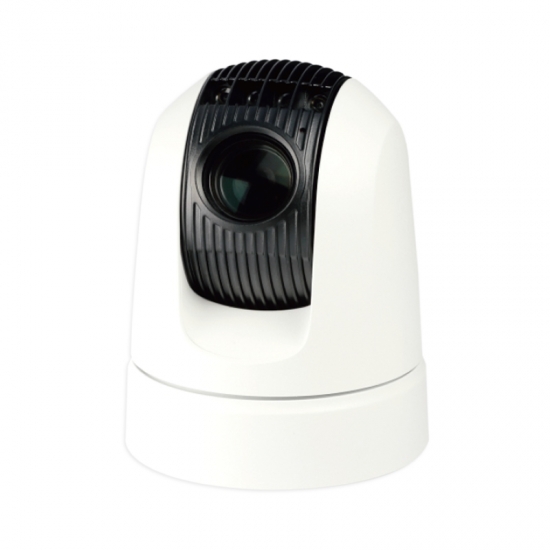

AC3 Series Analog Aluminum HD SDI IR Rugged Marine Cameras

HD SDI AC3 Rugged PTZ Cameras for cars & ships.

  • item no.:

    AC3-S3002H-IR
  • product origin:

    20X
  • color:

    12X
  • shipping port:

    IP66
  • Description
  • Information
  • Downloads

Features



※ 1/2.8” CMOS, 2.13MP, 30X optical zoom;
※ Network video maximum support 1080P30;
※ Support CVBS standard clear video output;
※ Support H.265, H.264 video compression, support dual stream;
※ Support multi level video quality configuration;
※ ONVIF & RTSP Compliant;
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Digital image stabilization;
※ Soft PTZ address, protocol and baud rate self-adpative;
※ Waterproof index: IP66;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.

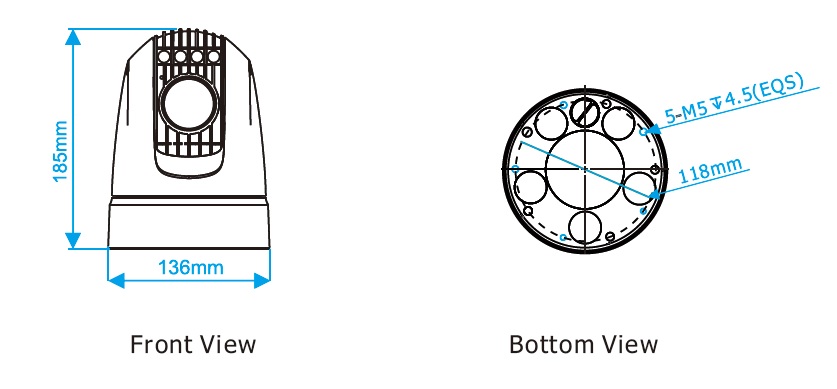

Dimension



Application


Model No.

AC3-S3002N-IR

Camera

Image Sensor

1/2.8" Progressive Scan CMOS,2.13MP

Active Pixel

1920(H) x 1080(V)

Signal System(SD)

PAL / NTSC

Min.Illumination

Color: 0.0013Lux; B/W:0.0008Lux

BLC

On/Off

WDR

On/Off

DNR

1 - 5 Steps/Off

Image Stabilization

On/Off

Day/Night

Manual/Auto

Lens

Optical Zoom

30X

Digital Zoom

12X

Lens

f=4.3mm - 129mm

IRIS

F1.6 - F4.7

View Angle

 63.7° (wide) to 2.3° (tele)

PTZ

Pan

 360° Continuous;  0.1° - 60°/s, adjustable, Preset Speed: 60°/s

Tilt

  - 15 °  - 90° with auto flip;  0.2° - 60°/s, adjustable, Preset Speed:60°/s

Preset Number

256

Preset Precision

 ±0.2°

Light

IR Wave Length

850nm

Range

60m

Switch

Auto / Manual

Network

Video Format

Max: 1080p30

Image Compression

H.264, H.265

Audio Compression

AAC

Protocol

HTTP, RTSP, TCP, UDP, ONVIF

No.of User Access

Up to 10

Dual Stream

Support

General

Comm.Interface

RS-485

Address

0 - 255

Network Interface

10M/100M

Comm.Protocol

PELCO-P / PLECO-D(self-adaptive)

Protocol

2400bps, 4800bps,9600pbs,19200bps(self-adaptive)

Voltage

DC 10.8 - 28V

Power

Min: 9W; Max: 20W

Working Temperature

 -25°C - +65°C

IP Code

IP66

Dimensions

Standard(Without Damper): Φ136(mm) x 185(mm)

Weight

Standard(Without Damper): 2.1(±0.2)kg
